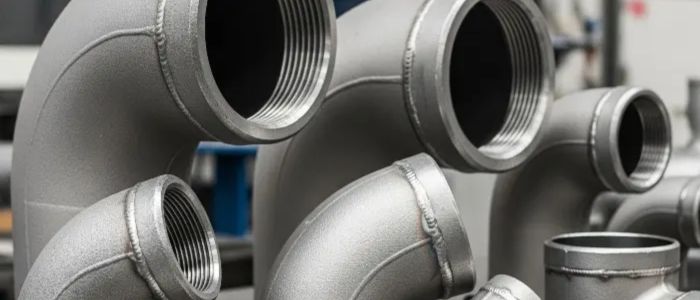

Buttweld Pipe Fittings Weight Chart in Kg, Mm, PDF is an essential tool for engineers, fabricators, and project planners These charts offer accurate weight information that is useful for cost estimation, safety planning, transport logistics, and support structure design. Because Buttweld Pipe fittings come in a range of sizes and schedules, having an accurate weight reference reduces mistakes and ensures that your project is completed on time.
Chart 1: Carbon Steel Buttweld Fittings (ASTM A234 WPB) – Schedule 40
|
Size (NPS) |
Size (mm) |
90° Elbow (kg) |
Tee (kg) |
Reducer (kg) |
Cap (kg) |
|
1/2″ |
15 |
0.18 |
0.25 |
0.20 |
0.08 |
|
1″ |
25 |
0.45 |
0.62 |
0.48 |
0.18 |
|
2″ |
50 |
1.45 |
2.05 |
1.58 |
0.58 |
|
4″ |
100 |
5.82 |
8.45 |
6.38 |
2.15 |
|
6″ |
150 |
12.85 |
18.65 |
14.25 |
4.85 |
|
8″ |
200 |
22.45 |
32.85 |
24.75 |
8.45 |
|
12″ |
300 |
52.85 |
78.25 |
58.95 |
19.85 |
Chart 2: Stainless Steel 316L Buttweld Fittings – When Corrosion Matters
|
Size (NPS) |
Size (mm) |
90° Elbow (kg) |
Tee (kg) |
Reducer (kg) |
Cap (kg) |
|
1″ |
25 |
0.49 |
0.67 |
0.52 |
0.19 |
|
2″ |
50 |
1.57 |
2.21 |
1.71 |
0.63 |
|
4″ |
100 |
6.29 |
9.13 |
6.89 |
2.32 |
|
6″ |
150 |
13.88 |
20.14 |
15.39 |
5.24 |
|
8″ |
200 |
24.25 |
35.48 |
26.73 |
9.13 |
|
12″ |
300 |
57.08 |
84.51 |
63.67 |
21.44 |
Chart 3: Heavy-Duty Schedule 80 Multi-Material Comparison
|
Size |
Material |
90° Elbow (kg) |
Tee (kg) |
Density Factor |
|
4″ |
A234 WPB |
8.34 |
12.13 |
1.00 |
|
4″ |
316L SS |
9.01 |
13.10 |
1.08 |
|
4″ |
Duplex 2205 |
9.34 |
13.59 |
1.12 |
|
4″ |
Inconel 625 |
9.59 |
13.95 |
1.15 |
