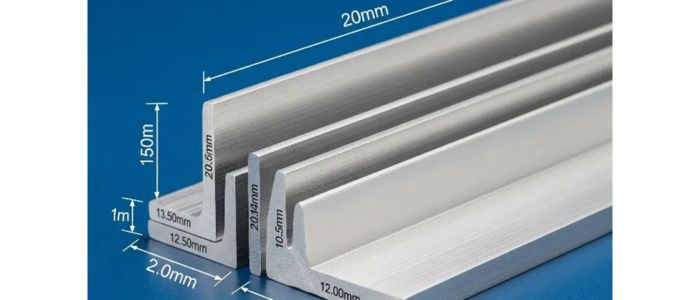

Aluminium Angles weight chart in kg, mm, pdf specifications are crucial for construction and engineering professionals who require precise calculations for structural projects. These L-shaped profiles, manufactured from high-grade aluminium alloys, deliver exceptional strength-to-weight ratios and feature two perpendicular legs forming 90-degree angles, making them ideal for building framework reinforcement, window assembly, facade support, machine construction, equipment mounting, and protective enclosures across diverse industrial applications.
Understanding Aluminium Angles Weight Chart Specifications in kg and mm
Detailed Aluminium Angles Weight Chart
Standard Equal Leg Aluminium Angles
|
Size (mm) |
Thickness (mm) |
Weight per Meter (kg) |
Cross-sectional Area (cm²) |
Weight per 6m (kg) |
Moment of Inertia (cm⁴) |
|
15 x 15 |
1.5 |
0.12 |
0.15 |
0.72 |
0.08 |
|
15 x 15 |
2.0 |
0.16 |
0.20 |
0.96 |
0.10 |
|
20 x 20 |
1.5 |
0.16 |
0.20 |
0.96 |
0.19 |
|
20 x 20 |
2.0 |
0.21 |
0.26 |
1.26 |
0.25 |
|
20 x 20 |
3.0 |
0.30 |
0.37 |
1.80 |
0.34 |
|
25 x 25 |
2.0 |
0.27 |
0.34 |
1.62 |
0.48 |
|
25 x 25 |
3.0 |
0.39 |
0.49 |
2.34 |
0.68 |
|
25 x 25 |
4.0 |
0.51 |
0.64 |
3.06 |
0.86 |
|
30 x 30 |
2.0 |
0.33 |
0.42 |
1.98 |
0.85 |
|
30 x 30 |
3.0 |
0.48 |
0.61 |
2.88 |
1.21 |
|
30 x 30 |
4.0 |
0.63 |
0.79 |
3.78 |
1.56 |
|
35 x 35 |
3.0 |
0.57 |
0.72 |
3.42 |
1.85 |
|
35 x 35 |
4.0 |
0.75 |
0.94 |
4.50 |
2.41 |
|
40 x 40 |
3.0 |
0.66 |
0.83 |
3.96 |
2.65 |
|
40 x 40 |
4.0 |
0.87 |
1.09 |
5.22 |
3.45 |
|
40 x 40 |
5.0 |
1.07 |
1.35 |
6.42 |
4.22 |
|
45 x 45 |
4.0 |
0.99 |
1.25 |
5.94 |
4.69 |
|
45 x 45 |
5.0 |
1.23 |
1.55 |
7.38 |
5.78 |
|
50 x 50 |
3.0 |
0.84 |
1.06 |
5.04 |
4.84 |
|
50 x 50 |
4.0 |
1.11 |
1.40 |
6.66 |
6.32 |
|
50 x 50 |
5.0 |
1.36 |
1.71 |
8.16 |
7.76 |
|
50 x 50 |
6.0 |
1.62 |
2.04 |
9.72 |
9.16 |
|
60 x 60 |
4.0 |
1.35 |
1.70 |
8.10 |
10.35 |
|
60 x 60 |
5.0 |
1.68 |
2.12 |
10.08 |
12.78 |
|
60 x 60 |
6.0 |
1.98 |
2.49 |
11.88 |
15.12 |
|
60 x 60 |
8.0 |
2.61 |
3.29 |
15.66 |
19.58 |
|
70 x 70 |
5.0 |
1.99 |
2.51 |
11.94 |
19.83 |
|
70 x 70 |
6.0 |
2.37 |
2.99 |
14.22 |
23.52 |
|
70 x 70 |
7.0 |
2.75 |
3.47 |
16.50 |
27.15 |
|
75 x 75 |
5.0 |
2.11 |
2.66 |
12.66 |
24.18 |
|
75 x 75 |
6.0 |
2.52 |
3.18 |
15.12 |
28.72 |
|
75 x 75 |
8.0 |
3.28 |
4.13 |
19.68 |
37.35 |
|
75 x 75 |
10.0 |
4.01 |
5.06 |
24.06 |
45.42 |
|
80 x 80 |
6.0 |
2.70 |
3.41 |
16.20 |
34.52 |
|
80 x 80 |
8.0 |
3.54 |
4.47 |
21.24 |
45.12 |
|
80 x 80 |
10.0 |
4.35 |
5.49 |
26.10 |
55.23 |
|
90 x 90 |
6.0 |
3.06 |
3.86 |
18.36 |
49.84 |
|
90 x 90 |
8.0 |
4.02 |
5.08 |
24.12 |
65.24 |
|
90 x 90 |
10.0 |
4.95 |
6.25 |
29.70 |
79.86 |
|
100 x 100 |
6.0 |
3.42 |
4.31 |
20.52 |
68.42 |
|
100 x 100 |
8.0 |
4.50 |
5.68 |
27.00 |
89.75 |
|
100 x 100 |
10.0 |
5.52 |
6.96 |
33.12 |
109.84 |
|
100 x 100 |
12.0 |
6.51 |
8.21 |
39.06 |
128.56 |
|
120 x 120 |
8.0 |
5.46 |
6.89 |
32.76 |
154.32 |
|
120 x 120 |
10.0 |
6.72 |
8.48 |
40.32 |
189.45 |
|
120 x 120 |
12.0 |
7.95 |
10.03 |
47.70 |
223.68 |
|
150 x 150 |
10.0 |
8.52 |
10.75 |
51.12 |
362.84 |
|
150 x 150 |
12.0 |
10.11 |
12.76 |
60.66 |
430.25 |
|
150 x 150 |
15.0 |
12.42 |
15.68 |
74.52 |
527.93 |
Unequal Leg Aluminium Angles
|
Size (mm) |
Thickness (mm) |
Weight per Meter (kg) |
Cross-sectional Area (cm²) |
Weight per 6m (kg) |
Moment of Inertia XX (cm⁴) |
Moment of Inertia YY (cm⁴) |
|
25 x 15 |
2.0 |
0.22 |
0.28 |
1.32 |
0.31 |
0.12 |
|
25 x 15 |
3.0 |
0.32 |
0.40 |
1.92 |
0.43 |
0.16 |
|
30 x 20 |
2.0 |
0.28 |
0.35 |
1.68 |
0.52 |
0.24 |
|
30 x 20 |
3.0 |
0.42 |
0.53 |
2.52 |
0.74 |
0.34 |
|
40 x 20 |
3.0 |
0.48 |
0.61 |
2.88 |
1.23 |
0.35 |
|
40 x 20 |
4.0 |
0.63 |
0.79 |
3.78 |
1.58 |
0.44 |
|
40 x 25 |
3.0 |
0.54 |
0.68 |
3.24 |
1.35 |
0.56 |
|
40 x 25 |
4.0 |
0.71 |
0.89 |
4.26 |
1.74 |
0.72 |
|
45 x 30 |
4.0 |
0.83 |
1.05 |
4.98 |
2.42 |
1.15 |
|
45 x 30 |
5.0 |
1.02 |
1.29 |
6.12 |
2.98 |
1.41 |
|
50 x 25 |
4.0 |
0.83 |
1.05 |
4.98 |
2.84 |
0.75 |
|
50 x 25 |
5.0 |
1.02 |
1.29 |
6.12 |
3.51 |
0.92 |
|
50 x 30 |
4.0 |
0.89 |
1.12 |
5.34 |
2.95 |
1.24 |
|
50 x 30 |
5.0 |
1.10 |
1.39 |
6.60 |
3.65 |
1.53 |
|
60 x 30 |
5.0 |
1.26 |
1.59 |
7.56 |
5.42 |
1.56 |
|
60 x 30 |
6.0 |
1.50 |
1.89 |
9.00 |
6.43 |
1.85 |
|
60 x 40 |
5.0 |
1.39 |
1.75 |
8.34 |
5.68 |
2.84 |
|
60 x 40 |
6.0 |
1.65 |
2.08 |
9.90 |
6.75 |
3.38 |
|
65 x 50 |
6.0 |
1.89 |
2.38 |
11.34 |
8.95 |
5.24 |
|
65 x 50 |
8.0 |
2.48 |
3.13 |
14.88 |
11.65 |
6.78 |
|
70 x 50 |
6.0 |
1.98 |
2.50 |
11.88 |
10.52 |
5.38 |
|
70 x 50 |
8.0 |
2.61 |
3.29 |
15.66 |
13.75 |
6.98 |
|
75 x 50 |
6.0 |
2.07 |
2.61 |
12.42 |
12.35 |
5.52 |
|
75 x 50 |
8.0 |
2.73 |
3.44 |
16.38 |
16.18 |
7.18 |
|
80 x 40 |
6.0 |
2.01 |
2.53 |
12.06 |
14.82 |
3.45 |
|
80 x 40 |
8.0 |
2.64 |
3.33 |
15.84 |
19.45 |
4.48 |
|
80 x 60 |
8.0 |
3.09 |
3.90 |
18.54 |
20.85 |
12.65 |
|
80 x 60 |
10.0 |
3.81 |
4.81 |
22.86 |
25.68 |
15.52 |
|
90 x 60 |
8.0 |
3.33 |
4.20 |
19.98 |
27.84 |
13.25 |
|
90 x 60 |
10.0 |
4.11 |
5.19 |
24.66 |
34.32 |
16.28 |
|
100 x 50 |
8.0 |
3.37 |
4.25 |
20.22 |
35.96 |
7.84 |
|
100 x 50 |
10.0 |
4.17 |
5.26 |
25.02 |
44.52 |
9.68 |
|
100 x 65 |
8.0 |
3.69 |
4.66 |
22.14 |
37.85 |
15.24 |
|
100 x 65 |
10.0 |
4.56 |
5.76 |
27.36 |
46.89 |
18.78 |
|
100 x 75 |
10.0 |
4.86 |
6.13 |
29.16 |
48.95 |
25.84 |
|
100 x 75 |
12.0 |
5.76 |
7.27 |
34.56 |
57.86 |
30.52 |
|
120 x 80 |
10.0 |
5.67 |
7.16 |
34.02 |
81.45 |
31.68 |
|
120 x 80 |
12.0 |
6.75 |
8.52 |
40.50 |
96.78 |
37.52 |
|
150 x 75 |
12.0 |
7.65 |
9.66 |
45.90 |
162.84 |
32.45 |
|
150 x 75 |
15.0 |
9.45 |
11.93 |
56.70 |
200.68 |
39.85 |
|
150 x 100 |
12.0 |
8.55 |
10.80 |
51.30 |
165.95 |
67.84 |
|
150 x 100 |
15.0 |
10.65 |
13.44 |
63.90 |
205.68 |
83.95 |
