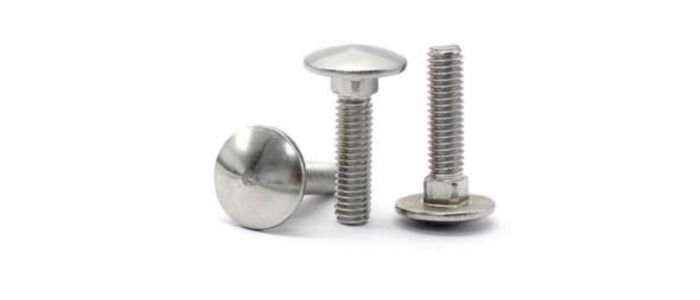

Carriage bolts weight charts in kg, mm, PDF provide detailed information on these heavy-duty fasteners, which feature a round head and a square neck that locks into the material to prevent rotation when the nut is tightened. Carriage bolts are available in various materials and coatings, including stainless steel, galvanized steel, and zinc-plated options. Key specifications typically include diameters ranging from 1/4” to 1”, lengths from 1/2” to over 12”, and coarse UNC threads. They are manufactured to meet international standards such as DIN 603 and ASTM A307, ensuring reliability and compatibility across industrial applications.
| l\d | M5 | M6 | M8 | M10 | M12 | M16 | M20 |
|---|---|---|---|---|---|---|---|
| 16 | 4 | 6.9 | |||||
| 20 | 4.5 | 7.6 | 13.8 | 22.7 | |||
| 25 | 5.1 | 8.5 | 15.4 | 25.2 | |||
| 30 | 5.9 | 9.6 | 17 | 27.7 | 45.7 | ||
| 35 | 6.7 | 10.7 | 19 | 30.2 | 49.4 | ||
| 40 | 7.5 | 11.8 | 21 | 32.7 | 53.1 | ||
| 45 | 8.3 | 12.9 | 23 | 35.8 | 56.8 | ||
| 50 | 9.1 | 14 | 25 | 38.9 | 61.2 | 119 | |
| 55 | 9.9 | 15.1 | 26.9 | 42 | 65.6 | 126 | |
| 60 | 10.7 | 16.2 | 28.9 | 45.1 | 70 | 133 | |
| 65 | 11.5 | 17.3 | 30.9 | 48.2 | 74.4 | 141 | |
| 70 | 12.3 | 18.4 | 32.9 | 51.3 | 78.8 | 149 | 247 |
| 80 | 13.9 | 20.6 | 36.8 | 57.5 | 87 | 165 | 272 |
| 90 | 22.8 | 40.8 | 63.7 | 96 | 181 | 297 | |
| 100 | 25 | 44.8 | 69.9 | 105 | 197 | 322 | |
| 110 | 27.2 | 48.8 | 76.1 | 114 | 213 | 347 | |
| 120 | 29.4 | 52.8 | 82.3 | 123 | 229 | 372 | |
| 130 | 31.6 | 56.8 | 88.5 | 132 | 245 | 397 | |
| 140 | 32.8 | 60.8 | 95 | 141 | 261 | 422 | |
| 150 | 35 | 64.8 | 101 | 150 | 277 | 447 | |
| 160 | 107 | 159 | 293 | 497 | |||
| 180 | 119 | 177 | 325 | 547 | |||
| 200 | 131 | 195 | 357 | 597 |
