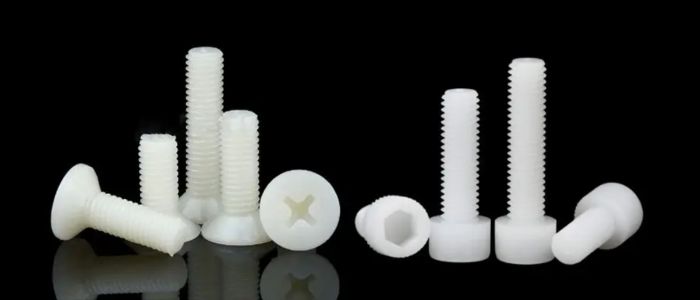

Nylon Screws Manufacturers entail good quality plastic screws in diverse sizes, types of threads, and head styles to fulfill the demands of electrical, electronic, automotive, and industrial consumerism. Nylon screws are highly favored because they are lightweight, their corrosion resistance is great, they are resistant to electrical insulation, and they are non-magnetic. Nylon Screws Weight Chart KG MM PDF is a handy resource tool to be used by engineers, designers, maintenance personnel, and procurement officers when selecting the product, planning the project, and estimating the materials. Manufacturers additionally propose the fastening solutions related to Nylock Nuts and Nylock Jam Nuts for providing safe, vibration-resistant assemblies in different applications.
In contrast to metallic fasteners, nylon screws do not rust, they are not electrically conducting, and they do not react with chemicals therefore are suitable in the sensitive environment. The correct data on weight and dimensions assists in determining the quantity of materials needed, the weight of the package, the cost of transportation, and the weight of the load to consider in assemblies.
Nylon Screws Weight Chart allows one to learn much about screw diameter, length, type of threads and style of head and the weight of each screw. The screws made of nylon are often categorized in terms of the head design (pan head, countersunk, hex head, round head), thread type (metric, UNC, UNF), and the application-related requirements. Constructed with engineering grade nylon (PA6, PA66), these screws are providing good tensile strength, vibration and long term performance in both indoor and outdoor environment.
Nylon Screws Weight Chart, Nylon Screws Weight per Piece, Nylon Screws Weight Chart in KG, Nylon Screws Chart in MM, Nylon Screws Specification PDF, Nylon Plastic Screws weight Calculator.
Weight Chart Tables
Chart 1: Nylon Screws Weight Chart – Pan Head (Metric)
| Screw Size | Length (mm) | Thread Type | Head Type | Weight per Piece (kg) | Weight per 100 Pieces (kg) |
|---|---|---|---|---|---|
| M3 | 6 | Metric | Pan Head | 0.0003 | 0.03 |
| M3 | 10 | Metric | Pan Head | 0.0005 | 0.05 |
| M4 | 10 | Metric | Pan Head | 0.0008 | 0.08 |
| M4 | 16 | Metric | Pan Head | 0.0012 | 0.12 |
| M5 | 20 | Metric | Pan Head | 0.0020 | 0.20 |
| M6 | 25 | Metric | Pan Head | 0.0035 | 0.35 |
Pan head nylon screws are electrically panel, consumer, and light-duty assemblies where panels, insulation and corrosion resistance are needed.
Chart 2: Nylon Screw Material Grades & Properties
| Material Grade | Standard | Density (g/cm³) | Tensile Strength (MPa) | Operating Temp (°C) | Typical Applications |
|---|---|---|---|---|---|
| PA6 (Nylon 6) | DIN / ISO | 1.13 | 65–75 | -40 to 85 | Electronics, housings |
| PA66 (Nylon 66) | DIN / ISO | 1.14 | 75–85 | -40 to 120 | Automotive, machinery |
| Glass-Filled Nylon | ISO | 1.35 | 120–150 | -40 to 150 | High-strength uses |
The variety of grades of nylon provides the ability to provide nylons that are suitable in terms of being stronger, having a high temperature, or being dimensionally stable and lightweight.
Chart 3: Nylon Screws Weight Chart – Countersunk Head
| Screw Size | Length (mm) | Head Type | Thread Type | Weight per Piece (kg) | Approx Length (mm) |
|---|---|---|---|---|---|
| M3 | 8 | CSK | Metric | 0.0004 | 8 |
| M3 | 12 | CSK | Metric | 0.0006 | 12 |
| M4 | 16 | CSK | Metric | 0.0010 | 16 |
| M5 | 20 | CSK | Metric | 0.0018 | 20 |
| M6 | 25 | CSK | Metric | 0.0032 | 25 |
Countersunk nylon screws are suitable in applications that demand a flat finish with respect to the surface in enclosures, panels, furniture fittings, and lightweight structures.
Nylon screws provide economical, lightweight and corrosion free fastening solution in a vast array of applications that include electronics, electrical, automotive interiors, renewable energy, medical, and consumer goods. Such nylon screws kg and mm charts will help in the accurate estimation, effective procurement, and the conveyed project.
