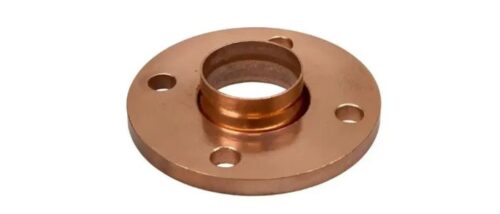

The Copper Flange Weight Chart in kg, mm, pdf is an essential tool for engineers and procurement teams, aiding in transport planning, handling, and installation. This guide offers a detailed overview of copper flange weights, enabling informed decisions in industrial projects.
Accurate knowledge of copper flange weights is crucial for project planning and execution. It ensures safe installations, efficient logistics, and smooth procurement processes.
Pipex.ai is dedicated to providing reliable data and easy access to verified suppliers across India. With resources like the copper flange weight chart, engineers and procurement professionals can make smarter, faster, and safer decisions.
Sample Copper Flange Weight Chart (Approximate Values)
Table 1: Common Copper Flange Weights – Class 150 & 300
|
Flange Type |
NPS (inches) |
Class 150 Weight (kg) |
Class 300 Weight (kg) |
|
Slip-On |
2″ |
1.5 |
2.1 |
|
Slip-On |
4″ |
3.8 |
5.4 |
|
Weld Neck |
6″ |
7.2 |
10.3 |
|
Blind |
8″ |
11.5 |
16.0 |
|
Threaded |
10″ |
14.0 |
20.5 |
Table 2: Extended Range of Copper Flange Weights – Class 150
|
Flange Type |
NPS (inches) |
Weight (kg) |
|
Slip-On |
1″ |
0.9 |
|
Slip-On |
3″ |
2.7 |
|
Weld Neck |
5″ |
5.5 |
|
Blind |
6″ |
8.8 |
|
Threaded |
12″ |
17.6 |
Table 3: Extended Range of Copper Flange Weights – Class 300
|
Flange Type |
NPS (inches) |
Weight (kg) |
|
Slip-On |
1″ |
1.4 |
|
Slip-On |
3″ |
3.5 |
|
Weld Neck |
5″ |
7.9 |
|
Blind |
6″ |
12.6 |
|
Threaded |
12″ |
24.0 |
Note: These are average weights. Actual values may vary based on flange standards (e.g., ASME B16.5, DIN, BS), manufacturer designs, and copper alloy grades.
