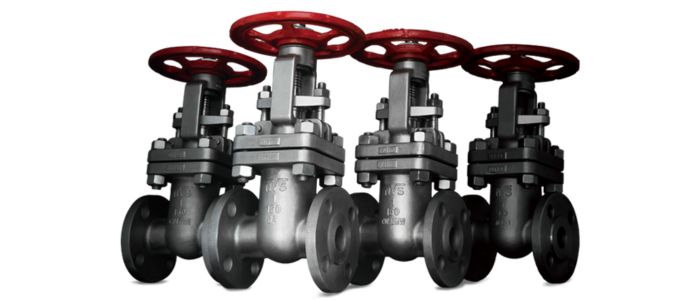

Free Alloy Valves Weight Chart In Kg, Mm, Pdf

The Alloy valves weight chart in kg, mm, PDF is a very valuable tool for industrial teams looking to improve efficiency and safety, Engineers, buyers, and project managers rely on these charts to obtain the weight information for all valve sizes and types. When you have the correct information to hand, you can select the right crane, create an appropriate base, and make your logistics plans, without having to make any assumptions. Whether you are supplying valves to petrochemical plants, power stations, ships, having accurate weight means you can be sure the project goes together quickly and safely. Well laid out and accurate alloy valves weight information mitigates costly delays and eases installation and transport for everyone involved.

Table of Contents

Understanding Alloy Valves Weight Chart in kg, mm, PDF Specifications

Comprehensive Alloy Valves Weight Chart

Size (mm)	Pressure Class	Gate Valve (kg)	Ball Valve (kg)	Globe Valve (kg)	Check Valve (kg)	Butterfly Valve (kg)	Plug Valve (kg)
50	150	15.5	12.3	18.7	11.2	8.9	14.1
50	300	22.8	18.6	26.4	16.5	13.2	20.3
65	150	28.4	23.2	32.1	19.8	15.6	25.7
65	300	35.7	29.1	40.8	25.3	19.8	32.4
80	150	31.2	25.8	35.9	22.1	17.8	28.9
80	300	45.6	37.4	52.1	32.8	25.4	41.2
100	150	48.5	39.2	54.7	33.8	26.4	43.1
100	300	67.8	55.3	78.9	47.2	37.8	61.4
125	150	72.3	58.7	81.6	49.2	38.5	63.8
125	300	98.9	79.4	112.8	67.8	52.1	87.3
150	150	98.7	79.4	112.3	67.8	52.1	86.9
150	300	134.2	107.8	153.4	92.3	71.2	118.7
200	150	165.4	132.8	187.6	112.5	89.3	146.2
200	300	223.6	179.8	254.7	153.2	121.4	198.1
250	150	248.9	199.2	284.7	169.8	134.2	219.8
250	300	336.7	270.4	385.9	230.1	182.3	297.4
300	150	356.7	285.4	407.8	242.6	189.7	315.2
300	300	482.9	386.8	552.1	329.4	257.1	426.7
350	150	487.3	389.8	556.9	331.4	258.6	430.2
350	300	659.8	527.9	753.7	449.2	350.1	582.4
400	150	642.8	514.2	735.6	437.2	341.8	567.9
400	300	870.4	696.8	995.2	592.8	463.1	769.5

Alloy Gate Valve Weight Chart (Approximate kg)

Valve Size (mm)	Class 150	Class 300	Class 600
50 mm (2″)	17 kg	23 kg	35 kg
80 mm (3″)	30 kg	42 kg	65 kg
100 mm (4″)	45 kg	65 kg	110 kg
150 mm (6″)	95 kg	135 kg	230 kg
200 mm (8″)	160 kg	250 kg	400 kg
250 mm (10″)	250 kg	370 kg	600 kg
300 mm (12″)	360 kg	540 kg	850 kg
400 mm (16″)	600 kg	850 kg	1300 kg
500 mm (20″)	950 kg	1400 kg	2100 kg
600 mm (24″)	1350 kg	2000 kg	3100 kg
