Lag Bolts Weight Chart: Ultimate Guide to Sizes & Weights

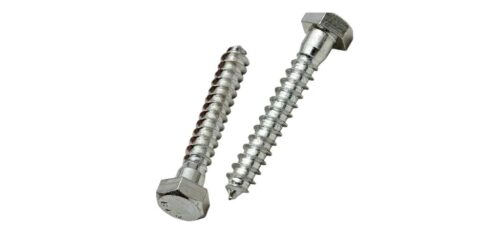

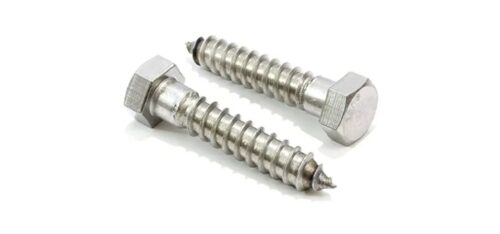

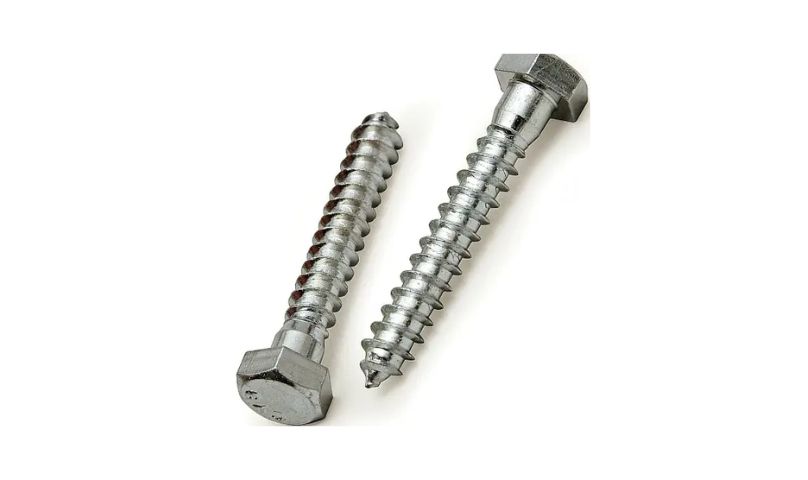

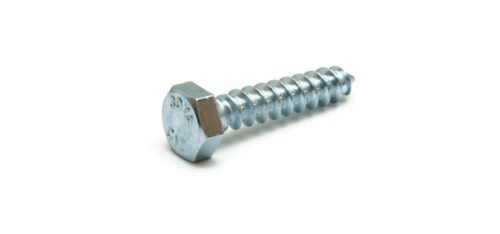

Lag bolts or lag screws are construction, woodworking, and structural fasteners that are heavy and are typically used in construction. They are made to offer powerful and safe bondages in materials such as wood, concrete (with anchors) and masonry. The weight of lag bolts is one of the issues that are frequently ignored. A Lag bolt weight chart may be very handy to engineers, builders and the DIYers who need to determine the load, shipping cost, or material used.

What Is a Lag Bolt Weight Chart?

A lag bolt weight chart is a table of the approximate weight of lag bolts depending on their size, diameter, and length. These charts are usually standardized and are dependent on the material (mostly steel or stainless steel) and dimensions of the bolt. Depending on the chart, the weight is normally quoted on a per-piece or per-100/1000 basis.

Lag Bolt – Chemical Composition (%)

(Typical for Carbon Steel Lag Bolts – Grade 4.6 / 5.6)

Element	Composition (%)
Carbon (C)	0.15 – 0.30
Manganese (Mn)	0.40 – 0.70
Silicon (Si)	0.10 – 0.35
Phosphorus (P)	≤ 0.050
Sulfur (S)	≤ 0.050
Iron (Fe)	Balance

Lag Bolt – Mechanical Properties

Property	Value
Tensile Strength	400 – 600 MPa
Yield Strength	240 – 400 MPa
Elongation	≥ 20%
Hardness	120 – 180 HB
Proof Load	As per ISO standards
Shear Strength	Approx. 60% of tensile strength

The interpretation of this chart is useful in several ways. As an example, when you are planning a large construction project, the total weight of fasteners can be known to facilitate logistics, transportation and structural load calculations.

The things that influence the weight of lag bolts.

The weight of a lag bolt depends on a number of factors:

Diameter –The fatter the bolt, the heavier it is. Normal diameters are 1/4 inch to 1 inch.

Length – The longer bolts weigh heavier in nature. The lengths may be between 1 inch to 12 inches or more.

Material – Majority of lag bolts are fabricated out of carbon steel, stainless steel, or galvanized steel. Stainless steel bolts have a tendency to be heavier.

Thread Type and Head Style – These are not as significant, but differences in design can have a minor influence on the overall weight.

Understanding this chart helps in multiple ways. For example, if you’re planning a large construction project, knowing the total weight of fasteners can help with logistics, transportation, and structural load calculations.

Lag Bolt – Standard Weight Chart

Bolt Size (Diameter x Length)	Thread Type	Approx. Weight per Piece (Kg)	Estimated Weight per 100 Nos (Kg)
6 mm x 25 mm	Coarse	0.015	1.5
8 mm x 40 mm	Coarse	0.035	3.5
10 mm x 50 mm	Coarse	0.065	6.5
12 mm x 75 mm	Coarse	0.120	12.0
16 mm x 100 mm	Coarse	0.250	25.0
20 mm x 125 mm	Coarse	0.420	42.0
24 mm x 150 mm	Coarse	0.700	70.0
30 mm x 200 mm	Coarse	1.200	120.0

Why Lag Bolt Weight Matters

1. Structural Planning
   In large-scale construction, every component contributes to the total load. Knowing the weight of lag bolts helps engineers ensure that the structure can support itself safely.
2. Transportation and Cost Estimation
   When ordering lag bolts in bulk, total weight affects shipping costs. A weight chart allows accurate budgeting and prevents surprises.
3. Inventory Management
   For suppliers and warehouses, weight charts help estimate stock levels and manage storage efficiently.
4. Ease of Handling
   Heavy bolts may require special handling equipment, especially in industrial settings.

Special handling equipment may be necessary (often in an industrial environment) to handle heavy bolts.

How a Weight Chart can be used effectively.

To operate a lag bolt weight chart, you must determine the type and size of bolt that you require. Then, find its weight in the chart. Divide the weight per piece by the amount of bolts needed. This provides you with the overall weight that can be used in planning and logistics.

To illustrate, when you require 200 pieces of 1/2 inch x 8 inch lag bolts, each has a weight of about 0.40 kg, the weight of all of them would be 80 kg.

Conclusion

Lag bolt weight chart is a straightforward yet effective tool that helps in planning, estimating costs, and construction and manufacturing projects and enhances safety. Being a professional contractor or a DIY enthusiast, it is best to ensure the weight of your materials is known to make sure that you are efficient and accurate. It is always advisable to use manufacturer specific charts to obtain accurate data particularly in sensitive applications where accurate measurements are important.
