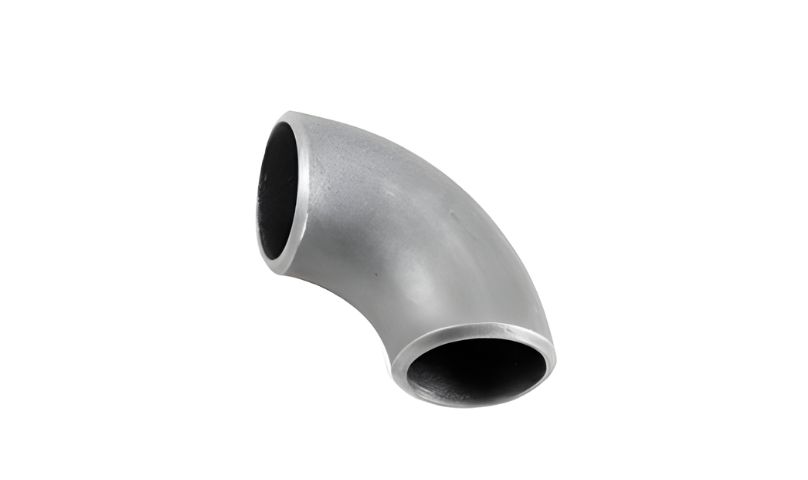

SA234 WP22 pipe fittings find widespread application in high pressure and high temperature applications, particularly in power plants, refineries, petrochemical industries and in oil and gas projects. These fittings are produced using chromium-molybdenum alloy steel which is excellent in its strength, resistance to oxidation and offers a long service life with extreme working environment.
The engineers, procurement managers, and project planners should have a correct SA234 WP22 Pipe Fittings Weight Chart. Weight information can be used to estimate transportation costs, structural data load, inventory control and adherence to engineering drawings. In this guideline, we explain it in detail and also give several SA234 WP22 Pipe Fittings Weight Chart in kg and SA234 WP22 Pipe Fittings Weight Chart weight chart in pdf reference-style tables.
What Is SA234 WP22 Material?
ASTM A234 WP22 is the grade of chromium-molybdenum alloy steel with about 2.25% chromium and 1% molybdenum. This makes it good in high temperature use. SA234 WP22 fittings are usually provided in seamless or welded and undergo a heat treatment to comply with rigid mechanical as well as chemical conditions.
- The common uses are:
- Pressure piping systems and boilers.
- Heat exchangers
- Steam pipelines
- Refinery process lines
Importance of SA234 WP22 Pipe Fittings Weight Chart
The SA234 WP22 Pipe Fittings Weight Chart helps buyers and engineers determine the exact weight of fittings based on size, schedule, and type. This data is crucial for:
- Accurate material take-offs
- Load-bearing and support design
- Freight and logistics estimation
- Comparing suppliers and quotations
- Creating project BOQs
Most buyers prefer having the SA234 WP22 Pipe Fittings Weight Chart weight chart in kg and downloadable SA234 WP22 Pipe Fittings Weight Chart weight chart in pdf for easy reference.

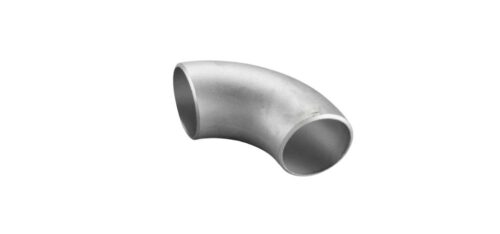

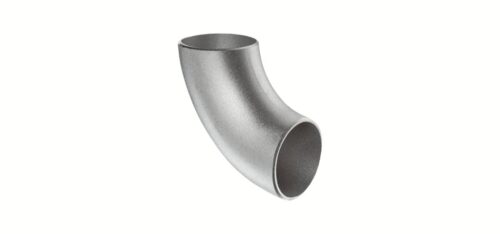

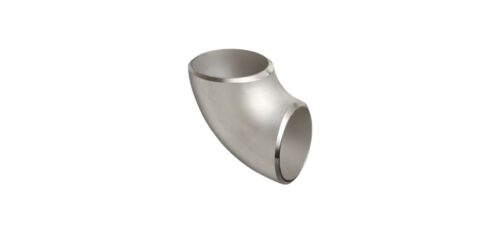

SA234 WP22 Elbow Weight Chart (90 Degree LR)
Below is a commonly used SA234 WP22 Pipe Fittings Weight Chart for 90° long radius elbows as per ASME B16.9. All weights are approximate and shown in kilograms.
| Nominal Pipe Size (NPS) | Schedule 40 (kg) | Schedule 80 (kg) | Schedule 160 (kg) |
| 1/2″ | 0.30 | 0.42 | 0.58 |
| 1″ | 0.85 | 1.25 | 1.75 |
| 2″ | 2.90 | 4.10 | 5.80 |
| 3″ | 6.20 | 8.90 | 12.50 |
| 4″ | 10.80 | 15.60 | 22.40 |
| 6″ | 27.50 | 38.90 | 56.80 |
| 8″ | 48.60 | 69.80 | 98.50 |
| 10″ | 79.40 | 112.60 | 158.30 |
| 12″ | 118.50 | 169.80 | 236.40 |
This table is frequently included in SA234 WP22 Pipe Fittings Weight Chart weight chart in pdf files provided by manufacturers.
SA234 WP22 Tee Weight Chart (Equal Tee)
Equal tees are widely used for branching pipelines. The following SA234 WP22 Pipe Fittings Weight Chart weight chart in kg covers standard equal tees.
| Nominal Pipe Size (NPS) | Schedule 40 (kg) | Schedule 80 (kg) | Schedule 160 (kg) |
| 1″ | 1.10 | 1.60 | 2.30 |
| 2″ | 3.80 | 5.40 | 7.60 |
| 3″ | 8.20 | 11.80 | 16.90 |
| 4″ | 14.90 | 21.60 | 31.40 |
| 6″ | 36.80 | 52.40 | 75.30 |
| 8″ | 64.20 | 92.60 | 131.80 |
| 10″ | 104.50 | 149.30 | 212.60 |
| 12″ | 156.80 | 224.90 | 318.70 |
This SA234 WP22 Pipe Fittings Weight Chart is especially helpful during project planning and bulk ordering.
SA234 WP22 Reducer Weight Chart (Concentric Reducer)
Reducers are used to connect pipes of different diameters. Below is a standard SA234 WP22 Pipe Fittings Weight Chart weight chart in kg for concentric reducers.
| Large Size × Small Size (NPS) | Schedule 40 (kg) | Schedule 80 (kg) | Schedule 160 (kg) |
| 2″ × 1″ | 1.60 | 2.30 | 3.20 |
| 3″ × 2″ | 3.10 | 4.50 | 6.30 |
| 4″ × 2″ | 5.40 | 7.90 | 11.40 |
| 6″ × 4″ | 12.80 | 18.60 | 26.90 |
| 8″ × 6″ | 21.40 | 30.80 | 44.20 |
| 10″ × 8″ | 35.90 | 51.60 | 74.80 |
| 12″ × 10″ | 52.70 | 76.40 | 110.30 |
Such reducer data is commonly bundled into SA234 WP22 Pipe Fittings Weight Chart weight chart in pdf documents for quick sharing.
How to Use SA234 WP22 Pipe Fittings Weight Chart Effectively
When using any SA234 WP22 Pipe Fittings Weight Chart, always consider:
- Pipe schedule and wall thickness
- Manufacturing tolerances
- Heat treatment condition
- Whether fittings are seamless or welded
Weights may vary slightly depending on dimensional tolerances and manufacturer practices, so charts should be used as a reference, not an absolute value.
Conclusion
The SA234 WP22 Pipe Fittings Weight Chart plays a vital role in industrial piping projects where accuracy, safety, and cost control matter. Whether you need the SA234 WP22 Pipe Fittings Weight Chart weight chart in kg for calculations or a SA234 WP22 Pipe Fittings Weight Chart weight chart in pdf for documentation, having reliable tables ensures smoother project execution.
