Spiral Wound Gasket Weight Chart In Kg, Mm, Pdf Updated In 2025

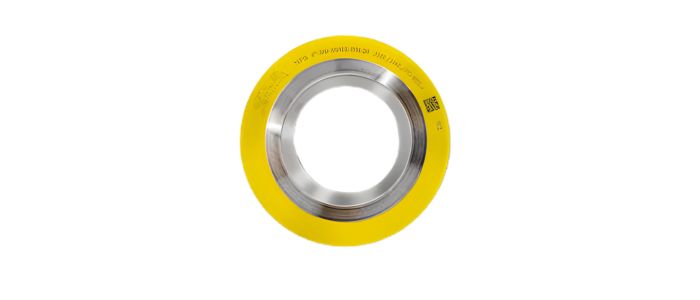

The Spiral Wound Gasket Weight Chart in KG, MM, PDF will assist in determining the weight of gasket sizes by providing a fast reference for weights. It will also assist you in determining the proper Spiral wound gasket dimension and the weights involved, allowing for a simple and accurate selection for the application.

Table of Contents

Spiral Wound Gasket with Weight Chart for the Outer Ring

316/FG/CS (weights in grams)
DN	150	300	600	900	1500	2500
1/2	31	40	40	62	62	78
3/4	41	61	61	70	70	87
1	51	69	69	87	87	106
1/4	51	79	79	98	98	155
1 1/2	79	100	100	113	113	190
2	100	121	121	291	291	293
2 1/2	139	169	169	367	367	387
3	115	200	100	304	375	500
4	239	269	269	444	500	682
5	200	365	578	635	705	955
6	220	485	661	882	851	1175
8	320	630	835	1420	1240	1715
10	445	770	1380	1926	1926	2606
12	800	975	1695	2669	2764	3363
14	1025	1628	1714	2336	3462	III
16	1355	1720	2435	2569	4106	III
18	1030	1887	2465	2985	4638	III
20	1350	2215	3190	3444	5031	III
24	1450	3370	3485	5000	7173

Spiral Wound Gasket with Inner and Outer Ring weight chart

316/FG/316/CS (weights in grams)
DN	150	300	400	600	900	1500	2500
1/2	0,034	0,045	0,045	0,045	0.063	0,063	0,077
3/4	0,047	0,065	0,067	0,067	0,073	0,074	0.089
1	0,05	0,08	0,076	0,076	0,92	0,095	0.11
1/4	0,072	0,089	0,089	0.088	0,122	0,122	0,164
1/2	0.1	0,12	0,177	0,177	0,132	0,132	0,201
2	0.13	0.155	0,154	0,154	0,293	0,293	0,308
2 1/2	0,181	0,208	0,208	0,208	0,385	0,385	0,403
3	0,2	0,26	0,267	0,267	0,367	0,403	0,539
4	0.33	0.35	0,349	0,45	0,532	0,569	0,757
5	0,355	0,485	0,478	0,693	0,744	0,813	1,038
6	0,4	0.635	0,619	0,781	0,987	0,965	1,312
8	0.52	0.801	0,838	1	1,493	1,418	1,846
10	0,722	0,98	1,055	1,573	2,135	2,135	2,757
12	1,12	1,287	1,346	1,9	2,708	3,082	3,591
14	1,35	1,893	1,912	2,069	2,79	3,831	//
16	1,73	2,177	2,256	2,8	3,152	4,573	//
18	1,66	2,561	2,665	3,05	3,755	5,238	//
20	1.95	2,947	2,993	3,766	4,3	5,709	//
24	2,5	3,919	4,007	4,585	5,87	7,948	//

Spiral Wound Gasket with Inner and Outer Ring weight chart – SS Outer ring

316/FG/316/316 (weights in grams)
DN	150	300	600	900	1500	2500
1/2	35	49	49	66	66	82
3/4	49	70	70	78	78	92
1	50	80	76	95	95	110
1 1/4	71	89	89	108	108	165
1 1/2	85	112	112	130	130	202
2	128	153	153	290	290	310
2 1/2	190	210	210	386	386	407
3	195	250	250	360	360	555
4	315	340	420	525	525	525
5	335	500	685	742	800	1050
6	390	615	670	978	941	1325
8	450	760	950	1420	1400	1870
10	670	890	1300	1880	1930	2600
12	1080	1208	1710	2727	3140	3665
14	1255	1860	1980	2790	4000	III
16	1590	2085	2665	3145	4675	///
18	1340	2350	2840	3640	5290	III
20	1620	2720	3585	4185	5760	///
24	2060	3635	3735	4380	5900	///

Application and Uses of Spiral Wound Metallic Gaskets

Food and Food Processing Industry
Pharma Industries
Chemical Industries
Laboratories
Heavy Machinery Industry
