Stainless Steel 3CR12L sheets are common in structural, mining, and industrial industries where the steel is needed in terms of strength and cost-efficiency. Weight calculation is important in the safeguarding of structures, transportation planning and budgeting of a project. The Stainless Steel 3CR12L Sheet weight chart is a valuable engineering tool that is highly accurate in giving the weight of sheet materials depending on their thickness and size of the sheets so that the professionals will not lose track and quality in fabrication and design.
What is a Stainless Steel 3CR12L Sheet?
Stainless Steel 3CR12L is a low-carbon version of 3CR12 ferritic stainless steel. It is also weldable as the carbon content has been reduced, and the likelihood of intergranular corrosion during the fabrication process has been reduced. It has around 11 to 12 percent chromium levels and has high corrosion resistance compared to mild steel and is more cost-efficient than austenitic stainless grades.
The 3CR12L sheets are magnetic and are good in mechanical strength, thus can be used in the structural and moderately corrosive environment.
Key Features
- Low carbon content for improved weldability
- Good resistance to atmospheric corrosion
- Higher strength than carbon steel
- Excellent fabrication and forming properties
- Cost-effective structural stainless solution
Why Is the Stainless Steel 3CR12L Sheet Weight Chart Important?
Correct weight information is necessary in making load calculations, structural supports design, and logistics planning. The weight chart assists the engineers in establishing dead loads within the steel structures and makes sure that they are aligned with project requirements. It is used by procurement teams to estimate the material requirements and the transportation costs.
The Stainless Steel 3CR12L Sheet Weight Chart in kg mm fits the theoretical weight of the data obtained by dividing by the thickness in millimeters and productivity in kilograms per square meter. Many professionals use the Stainless Steel 3CR12L Sheet Weight Chart in kg mm pdf format because of documentation and easy sharing of the information which can be used by the sites and submitted by clients. Further, a downloadable Stainless Steel 3CR12L Sheet Weight Chart in PDF is handy in easy access at the time of installation and export documentation.
Without accurate weight information, projects may encounter miscalculations, excess costs, or structural imbalances.

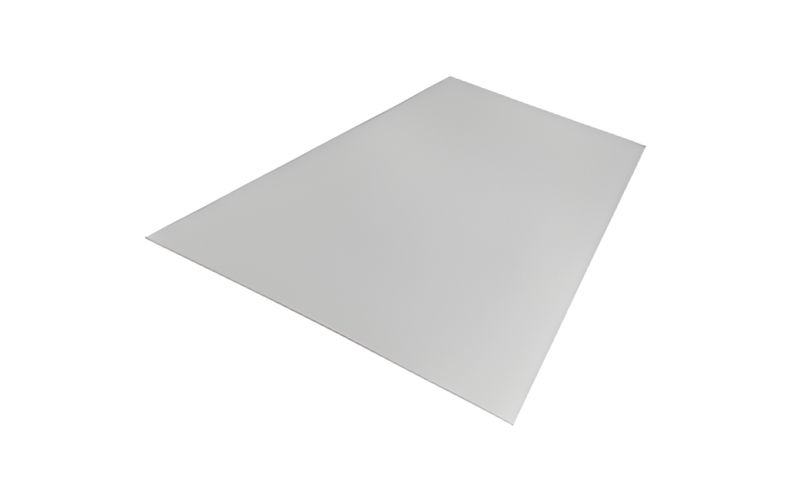

Stainless Steel 3CR12L Sheet – Master Weight Chart
| Thickness (mm) | Weight (kg/m²) | 1000×2000 mm (kg) | 1250×2500 mm (kg) | 1500×3000 mm (kg) |
| 0.5 | 3.87 | — | — | — |
| 0.8 | 6.19 | — | — | — |
| 1.0 | 7.74 | 15.48 | 24.19 | — |
| 1.2 | 9.29 | — | — | — |
| 1.5 | 11.61 | 23.22 | 36.29 | — |
| 2.0 | 15.48 | 30.96 | 48.38 | 69.66 |
| 2.5 | 19.35 | 38.70 | 60.48 | — |
| 3.0 | 23.22 | 46.44 | 72.57 | 104.49 |
| 4.0 | 30.96 | 61.92 | 96.76 | 139.32 |
| 5.0 | 38.70 | 77.40 | 120.95 | 174.15 |
| 6.0 | 46.44 | 92.88 | 145.14 | 208.98 |
| 8.0 | 61.92 | 123.84 | 193.52 | 278.64 |
| 10.0 | 77.40 | 154.80 | 241.90 | 348.30 |
| 12.0 | 92.88 | 185.76 | 290.28 | 417.96 |
| 16.0 | 123.84 | 247.68 | 387.04 | 557.28 |
| 20.0 | 154.80 | 309.60 | 483.80 | 696.60 |
Chemical Composition of Stainless Steel 3CR12L Sheet
The chemical composition is carefully balanced to provide corrosion resistance, mechanical strength, and weldability.
Typical Chemical Composition (% by Weight)
| Element | Composition (%) | Purpose |
| Carbon (C) | ≤ 0.025 | Improves weldability, reduces carbide formation |
| Chromium (Cr) | 11.0 – 12.5 | Corrosion resistance |
| Nickel (Ni) | 0.3 – 1.0 | Enhances toughness |
| Manganese (Mn) | ≤ 1.5 | Improves hot working |
| Silicon (Si) | ≤ 1.0 | Strength & oxidation resistance |
| Phosphorus (P) | ≤ 0.04 | Controlled for ductility |
| Sulfur (S) | ≤ 0.03 | Maintains machinability |
| Nitrogen (N) | ≤ 0.03 | Strengthening element |
| Iron (Fe) | Balance | Base metal |
Dimensions of Stainless Steel 3CR12L Sheet
3CR12L sheets are available in cold-rolled and hot-rolled conditions.
Thickness Range
| Type | Thickness (mm) |
| Cold Rolled | 0.40 – 3.00 |
| Hot Rolled | 2.00 – 12.00 |
| Plate Form | 6.00 – 40.00 |
Standard Sheet Sizes (mm)
| Length | Width |
| 2000 | 1000 |
| 2500 | 1250 |
| 3000 | 1500 |
| 6000 | 1500–2000 |
Custom cut sizes are available as per fabrication requirements.
Available Sizes & Specifications
Stainless Steel 3CR12L sheets are typically available in:
- Thickness: 1 mm to 50 mm
- Width: 1000 mm, 1220 mm, 1500 mm
- Length: 2000 mm, 2440 mm, 3000 mm (custom sizes available)
- Finishes: Hot Rolled (HR), Cold Rolled (CR), Pickled & Oiled
Sheets can also be supplied as cut-to-size panels depending on project requirements.
Applications of Stainless Steel 3CR12L Sheets
The reason is that Stainless Steel 3CR12L sheets are better weldable, and have a moderate level of corrosion resistance, which makes them popular in mining and material handling equipment applications where durability is critical. They are also used in the structural frameworks and supports which need strength and less maintenance.
The 3CR12L sheets find application in the transport industry in rail wagons and truck bodies since they can be resistant to outdoor conditions. They are usually used in the water storage tanks and in the cement and sugar processing industries which work in semi-corrosive conditions. Also, this grade is used by the manufacturers of agricultural and construction machinery in the parts that are exposed to the moisture and different weather conditions.
Conclusion
The Stainless Steel 3CR12L Sheet weight chart is a very important device to an engineer, fabricator and procurement team. It provides correct material estimation, structural integrity and effective control of costs. Knowing the weight calculations and application condition in terms of thickness, professionals are able to choose the appropriate 3CR12L sheets to achieve the performance and durability of the material in the long-term.
