Stainless Steel 410DB sheets are mainly used in fabrication and structural applications where there is necessity for strength and heat resistance. Proper estimation of weight is crucial in the structural design, transportation planning as well as estimation of costs. The Stainless Steel 410DB Sheet weight chart is a good source of weight information based on thickness, which can be used by engineers, fabricators, and procurement representatives to make sure that they are correct in the project implementation.

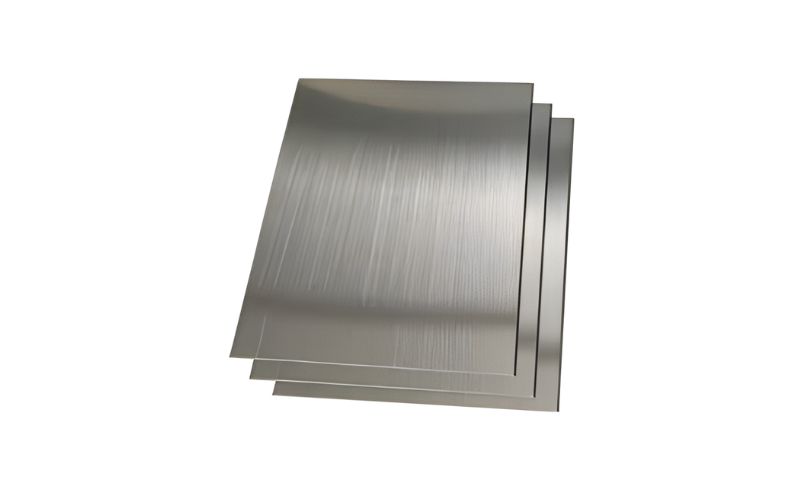

What Is Stainless Steel 410DB Sheet?
Stainless Steel 410DB is an adapted steel grade of 410DB Stainless steel, which is aimed to enhance formability and regulated mechanical properties. It has good resistance to corrosion in the mild conditions and high strength and medium heat resistance. The grade is a magnetic grade that is generally utilized in markets where durability and structural stability is needed.
The thickness of the sheets used to make fabrics is usually 410DB, which is used in fabrication projects where it is necessary to have controlled hardness and weldability.
Key Features
- Good strength and wear resistance
- Moderate corrosion resistance
- Magnetic martensitic structure
- Suitable for heat-treated applications
- Good fabrication characteristics
Mechanical Properties (Typical Annealed Condition)
| Property | Typical Value |
| Tensile Strength | 480 – 650 MPa |
| Yield Strength | ≥ 275 MPa |
| Elongation | 15 – 20% |
| Hardness | 170 – 210 HB |
| Density | 7.75 g/cm³ |
410DB can be heat treated to achieve higher hardness and strength depending on application.
Why Is the Stainless Steel 410DB Sheet Weight Chart Important?
Weight calculation is fundamental in calculating dead loads, structural balance and requiring material handling functions. The Stainless Steel 410DB Sheet Weight Chart in kg mm offers values of thickness-based weight values in kilograms per square meter and therefore enables one to plan projects appropriately.
To document and allow the client to refer to it, a professional frequently utilizes the Stainless Steel 410DB Sheet Weight Chart in kg mm pdf that provides easy sharing and storage of this information. An Excel Stainless Steel Sheet 410DB Weight Chart in PDF format is also downloadable and handy on the field to provide on-site information, export documentation and also to verify the procurement.
Proper weight data will reduce inaccuracies in the structural analysis and avoid cost surprises in large scale installations.
Stainless Steel 410DB Sheet – Master Weight Chart
| Thickness (mm) | Weight (kg/m²) | 1000×2000 mm (kg) | 1250×2500 mm (kg) | 1500×3000 mm (kg) |
| 0.5 | 3.88 | — | — | — |
| 1.0 | 7.75 | 15.50 | 24.22 | — |
| 1.5 | 11.63 | — | — | — |
| 2.0 | 15.50 | 31.00 | 48.44 | 69.75 |
| 3.0 | 23.25 | 46.50 | 72.66 | 104.63 |
| 4.0 | 31.00 | 62.00 | 96.88 | 139.50 |
| 5.0 | 38.75 | 77.50 | 121.10 | 174.38 |
| 6.0 | 46.50 | 93.00 | 145.32 | 209.25 |
| 8.0 | 62.00 | 124.00 | 193.76 | 279.00 |
| 10.0 | 77.50 | 155.00 | 242.20 | 348.75 |
| 12.0 | 93.00 | 186.00 | 290.64 | 418.50 |
| 16.0 | 124.00 | 248.00 | 387.52 | 558.00 |
| 20.0 | 155.00 | 310.00 | 484.40 | 697.50 |
Dimensions of Stainless Steel 410DB Sheet
Thickness Range
| Type | Thickness (mm) |
| Cold Rolled | 0.40 – 3.00 |
| Hot Rolled | 2.00 – 12.00 |
| Plate | Up to 40.00 |
Standard Sheet Sizes (mm)
| Length | Width |
| 2000 | 1000 |
| 2500 | 1250 |
| 3000 | 1500 |
| 6000 | 1500–2000 |
Applications of Stainless Steel 410DB Sheets
Stainless Steel 410DB sheets find application in structural parts, fabrication constructions, and devices that need strength and medium level of corrosivity. They find use in car parts, industrial machinery, heat resistant parts, and to structural frameworks. The material is effective in the areas that are subject to the atmospheric conditions and medium mechanical strains and so it can be used in the interior and exterior industrial applications.
How to Use the Weight Chart Correctly
As the calculations need to be accurate, it will be best to check the thickness of the sheet in millimeters and compare it to the value of the weight per square meter. Divide by the amount of the sheet used and the number needed. In large scale projects, check actual weights by mill test certificates to ensure that they conform to engineering and safety requirements.
Chemical Composition of Stainless Steel 410DB Sheet
The chemical composition of 410DB is carefully balanced to achieve strength and corrosion resistance while maintaining machinability and weldability.
Typical Chemical Composition (% by Weight)
| Element | Composition (%) | Function |
| Carbon (C) | 0.08 – 0.15 | Provides hardness & strength |
| Chromium (Cr) | 11.5 – 13.5 | Corrosion & oxidation resistance |
| Manganese (Mn) | ≤ 1.0 | Improves hot workability |
| Silicon (Si) | ≤ 1.0 | Strength & oxidation resistance |
| Phosphorus (P) | ≤ 0.04 | Controlled for ductility |
| Sulfur (S) | ≤ 0.03 | Improves machinability |
| Iron (Fe) | Balance | Base metal |
Conclusion
The Stainless Steel 410DB Sheet weight chart is a tool that is needed by engineers and those in the procurement profession. It helps in correct calculation of the loads, estimation of costs and efficient execution of the project. The industries, by knowing the thickness-based weight values to use and the application needs, can be able to have confidence in the reliable performance and durability of Stainless Steel 410DB sheets.
