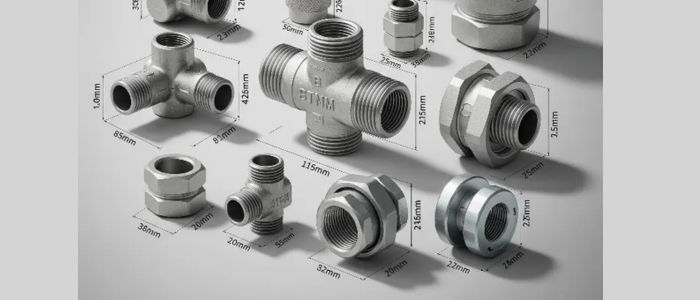

Comprehensive Weight Chart Tables for Industrial Tube Fitting
Carbon Steel Tube Fittings – Standard Pressure Rating
|
Fitting Type |
6mm OD |
8mm OD |
10mm OD |
12mm OD |
15mm OD |
18mm OD |
22mm OD |
28mm OD |
35mm OD |
42mm OD |
|
90° Elbow |
0.025 kg |
0.032 kg |
0.048 kg |
0.065 kg |
0.095 kg |
0.128 kg |
0.185 kg |
0.265 kg |
0.425 kg |
0.625 kg |
|
45° Elbow |
0.022 kg |
0.028 kg |
0.042 kg |
0.058 kg |
0.085 kg |
0.115 kg |
0.165 kg |
0.235 kg |
0.385 kg |
0.565 kg |
|
Equal Tee |
0.038 kg |
0.052 kg |
0.075 kg |
0.098 kg |
0.142 kg |
0.195 kg |
0.285 kg |
0.398 kg |
0.585 kg |
0.825 kg |
|
Cross |
0.045 kg |
0.065 kg |
0.095 kg |
0.125 kg |
0.185 kg |
0.265 kg |
0.385 kg |
0.565 kg |
0.785 kg |
1.125 kg |
|
Union |
0.045 kg |
0.062 kg |
0.088 kg |
0.115 kg |
0.168 kg |
0.225 kg |
0.325 kg |
0.445 kg |
0.625 kg |
0.865 kg |
|
Coupling |
0.015 kg |
0.022 kg |
0.032 kg |
0.045 kg |
0.065 kg |
0.095 kg |
0.135 kg |
0.195 kg |
0.285 kg |
0.395 kg |
Stainless Steel 316 Grade Tube Fittings
|
Fitting Type |
6mm OD |
8mm OD |
10mm OD |
12mm OD |
15mm OD |
18mm OD |
22mm OD |
28mm OD |
35mm OD |
42mm OD |
|
90° Elbow |
0.028 kg |
0.036 kg |
0.055 kg |
0.075 kg |
0.108 kg |
0.145 kg |
0.208 kg |
0.295 kg |
0.485 kg |
0.715 kg |
|
Equal Tee |
0.042 kg |
0.058 kg |
0.085 kg |
0.112 kg |
0.162 kg |
0.218 kg |
0.315 kg |
0.445 kg |
0.665 kg |
0.945 kg |
|
Union |
0.052 kg |
0.072 kg |
0.102 kg |
0.132 kg |
0.192 kg |
0.258 kg |
0.372 kg |
0.512 kg |
0.715 kg |
0.985 kg |
|
Bulkhead Union |
0.055 kg |
0.075 kg |
0.105 kg |
0.145 kg |
0.205 kg |
0.285 kg |
0.395 kg |
0.565 kg |
0.785 kg |
1.085 kg |
|
Coupling |
0.018 kg |
0.025 kg |
0.038 kg |
0.052 kg |
0.075 kg |
0.108 kg |
0.155 kg |
0.225 kg |
0.325 kg |
0.455 kg |
Brass Tube Fittings – Commercial Grade
|
Fitting Type |
6mm OD |
8mm OD |
10mm OD |
12mm OD |
15mm OD |
18mm OD |
22mm OD |
28mm OD |
|
Compression |
0.065 kg |
0.085 kg |
0.115 kg |
0.155 kg |
0.225 kg |
0.295 kg |
0.425 kg |
0.585 kg |
|
Flare |
0.055 kg |
0.075 kg |
0.105 kg |
0.145 kg |
0.205 kg |
0.285 kg |
0.395 kg |
0.545 kg |
|
Union |
0.075 kg |
0.095 kg |
0.125 kg |
0.165 kg |
0.235 kg |
0.315 kg |
0.445 kg |
0.615 kg |
|
Elbow |
0.045 kg |
0.065 kg |
0.085 kg |
0.125 kg |
0.185 kg |
0.245 kg |
0.365 kg |
0.485 kg |
Aluminum Pneumatic Tube Fittings
|
Fitting Type |
4mm OD |
6mm OD |
8mm OD |
10mm OD |
12mm OD |
14mm OD |
16mm OD |
20mm OD |
|
Push Connect |
0.012 kg |
0.018 kg |
0.025 kg |
0.035 kg |
0.048 kg |
0.065 kg |
0.085 kg |
0.125 kg |
|
Quick Disconnect |
0.018 kg |
0.025 kg |
0.035 kg |
0.048 kg |
0.065 kg |
0.095 kg |
0.125 kg |
0.185 kg |
|
Banjo |
– |
0.065 kg |
0.095 kg |
0.125 kg |
0.185 kg |
0.245 kg |
0.325 kg |
0.445 kg |
|
Elbow |
0.015 kg |
0.022 kg |
0.032 kg |
0.045 kg |
0.065 kg |
0.095 kg |
0.125 kg |
0.185 kg |
Specialized Tube Fitting Components and Accessories
High-Pressure Rated Fittings (6000 PSI)
|
Fitting Type |
6mm OD |
8mm OD |
10mm OD |
12mm OD |
15mm OD |
18mm OD |
22mm OD |
28mm OD |
|
HP Elbow |
0.045 kg |
0.065 kg |
0.095 kg |
0.135 kg |
0.195 kg |
0.285 kg |
0.425 kg |
0.585 kg |
|
HP Tee |
0.065 kg |
0.095 kg |
0.135 kg |
0.185 kg |
0.285 kg |
0.395 kg |
0.585 kg |
0.825 kg |
|
HP Union |
0.085 kg |
0.125 kg |
0.175 kg |
0.235 kg |
0.345 kg |
0.485 kg |
0.695 kg |
0.965 kg |
|
HP Cross |
0.095 kg |
0.145 kg |
0.205 kg |
0.285 kg |
0.425 kg |
0.585 kg |
0.865 kg |
1.225 kg |
Component Accessories Weight Chart
|
Component Type |
6mm |
8mm |
10mm |
12mm |
15mm |
18mm |
22mm |
28mm |
35mm |
42mm |
|
Ferrule Sets |
0.008 kg |
0.012 kg |
0.018 kg |
0.025 kg |
0.035 kg |
0.048 kg |
0.065 kg |
0.095 kg |
0.135 kg |
0.185 kg |
|
Nuts (SS316) |
0.015 kg |
0.022 kg |
0.032 kg |
0.045 kg |
0.065 kg |
0.095 kg |
0.135 kg |
0.195 kg |
0.285 kg |
0.395 kg |
|
Sleeves |
0.005 kg |
0.008 kg |
0.012 kg |
0.018 kg |
0.025 kg |
0.035 kg |
0.048 kg |
0.075 kg |
0.105 kg |
0.145 kg |
|
End Caps |
0.025 kg |
0.035 kg |
0.048 kg |
0.065 kg |
0.095 kg |
0.135 kg |
0.195 kg |
0.285 kg |
0.425 kg |
0.585 kg |
Reducing Fittings Weight Specifications
|
Size Combination |
Weight (kg) |
Material |
Size Combination |
Weight (kg) |
Material |
|
12mm x 6mm |
0.055 |
Carbon Steel |
28mm x 18mm |
0.245 |
Carbon Steel |
|
15mm x 8mm |
0.068 |
Carbon Steel |
35mm x 22mm |
0.365 |
Carbon Steel |
|
18mm x 10mm |
0.085 |
Carbon Steel |
42mm x 28mm |
0.485 |
Carbon Steel |
|
22mm x 15mm |
0.165 |
Carbon Steel |
22mm x 12mm |
0.185 |
Stainless Steel |
