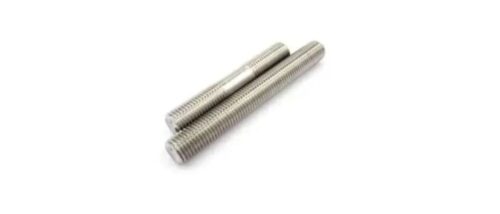

What Is a Threaded Rod?
A threaded rod also known as a stud or all-thread is a long, straight bar that is fully or partially threaded along its length. These rods are used in various applications, including structural support, anchoring, and assembly in both industrial and commercial projects. Manufactured in a wide range of diameters, lengths, and thread pitches, these rods are most commonly sized using the metric system, referred to as Threaded Rod in mm.
To ensure proper installation, accurate load-bearing, and cost efficiency, professionals must reference a Threaded Rod Size Chart and a Threaded Rod Weight Chart in kg during the planning and procurement phases.Precision is critical in engineering and construction.
Sample Threaded Rod Weight Chart in kg
Here’s a snapshot from the Pipex.ai product catalog showing approximate weights per meter for standard Threaded Rod in mm:
|
Thread Size (mm) |
Nominal Diameter (mm) |
Approx. Weight per Meter (kg) |
|
M5 |
5.0 |
0.157 |
|
M6 |
6.0 |
0.222 |
|
M8 |
8.0 |
0.395 |
|
M10 |
10.0 |
0.617 |
|
M12 |
12.0 |
0.891 |
|
M14 |
14.0 |
1.206 |
|
M16 |
16.0 |
1.579 |
|
M18 |
18.0 |
2.000 |
|
M20 |
20.0 |
2.466 |
|
M22 |
22.0 |
2.979 |
|
M24 |
24.0 |
3.558 |
|
M27 |
27.0 |
4.535 |
|
M30 |
30.0 |
5.540 |
|
M33 |
33.0 |
6.674 |
|
M36 |
36.0 |
7.998 |
|
M39 |
39.0 |
9.285 |
|
M42 |
42.0 |
10.620 |
|
M45 |
45.0 |
12.000 |
|
M48 |
48.0 |
13.500 |
|
M52 |
52.0 |
15.850 |
Note: Weights are approximate and based on medium carbon steel rods. Actual weight may vary slightly depending on thread pitch and material density. For precise engineering use, always refer to manufacturer specifications or download the official Threaded Rod Dimension Chart in mm kg PDF from Pipex.ai.
