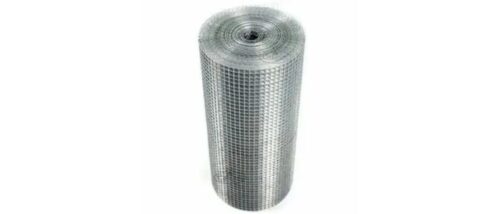

Wire mesh is a critical component across multiple industries, from construction and agriculture to automotive and aerospace. For manufacturers, wholesalers, and end-users in the India B2B market, understanding the weight of wire mesh per unit area is essential for logistics, pricing, and application planning. A wire mesh weight chart in PDF simplifies these decisions, offering a quick reference for calculating material requirements.
Wire Mesh Weight Chart (Per Square Meter)
Mesh Size |
Wire Diameter (mm) |
Wire Gauge (SWG) |
Open Area (%) |
Approx. Weight (kg/m²) |
|
6 x 6 |
2.0 |
14 |
66% |
5.50 |
|
8 x 8 |
1.6 |
16 |
70% |
4.25 |
|
10 x 10 |
1.2 |
18 |
74% |
3.10 |
|
12 x 12 |
1.0 |
19 |
76% |
2.50 |
|
16 x 16 |
0.9 |
20 |
78% |
2.00 |
|
20 x 20 |
0.7 |
22 |
80% |
1.55 |
|
30 x 30 |
0.6 |
23 |
82% |
1.25 |
Sample Wire Mesh Weight Chart
Here’s a simplified version of a wire mesh weight chart:
Mesh Size |
Wire Diameter (mm) |
Weight (kg/m²) |
|
10 x 10 |
1.6 |
3.25 |
|
12 x 12 |
1.2 |
2.35 |
|
20 x 20 |
0.9 |
1.42 |
|
30 x 30 |
0.6 |
0.95 |
|
50 x 50 |
0.4 |
0.58 |
