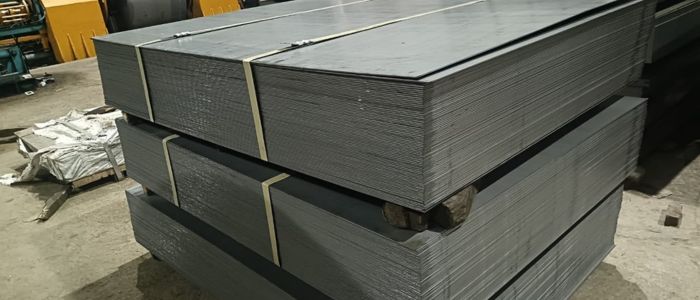

The MS Sheet Weight Chart in Kg, mm, and PDF allows engineers, fabricators, and suppliers to quickly calculate material weight based on sheet thickness and dimensions. Mild steel (MS) sheets are widely utilized in the manufacturing, automotive, and construction industries due to their strength and versatility. This chart simplifies project planning and helps with cost estimation and material selection by providing accurate weight information per square meter or per sheet. Downloading the MS sheet weight chart PDF ensures easy offline access for procurement teams and fabrication workshops.
Check MS Sheet Weight Chart in kg, 3 mm MS sheet weight, MS sheet weight chart in Kg, 3 mm MS sheet weight, 2 mm MS Sheet weight
MS Sheet Weight Chart in MM, KG, PDF Updated 2025
| Thickness (MM/GUAGE) | Available Sizes And Approximate Weight (KG) | |||
| 1250 MM x 2500 MM | 1250 MM x 6300 MM | 1500 MM x 6300 MM | 2000 MM x 6300 MM | |
| 1.6 mm | 40 | – | – | – |
| 2 mm | 50 | – | – | – |
| 2.5 mm | 63 | – | – | – |
| 2.9/3 mm | 75 | – | – | – |
| 4 mm | 100 | – | – | – |
| 5 mm | 125 | 315 | – | – |
| 6 mm | 150 | 380 | 454 | – |
| 8 mm | 200 | 505 | 605 | 806 |
| 10 mm | 250 | 630 | 756 | 1008 |
| 12 mm | – | 756 | 908 | 1210 |
| 14 mm | – | 880 | 1060 | 1411 |
| 16 mm | – | 1010 | 1210 | 1612 |
| 20 mm | – | 1260 | 1512 | 2015 |
| 25 mm | – | 1575 | 1890 | 2520 |
| 30 mm | – | – | 2268 | 3024 |
| 40 mm | – | – | 3025 | 4032 |
| 50 mm | – | – | 3780 | 5040 |
Sheets/Plates/Coils Material, Grades & Specifications
| Sheets/Plates/Coils | Specifications |
| Surface | 2B, 2D, BA, NO. 1, NO. 4, NO.8, 8K, Mirror, Checkered, Embossed, Hair Line, Sand Blast, Brush, Etching |
| Standard | ASTM / ASME SB 168, ASTM / ASME SB 424 , ASTM / ASME SB 443, UNS N06600 / Werkstoff Nr. 2.4816 |
| Size | 0.1 mm to 100 mm thick up to 2500 mm width & up to 8000 mm length available with NACE MR 01-75s. |
| Type | Shim Sheet, Perforated Sheet (Round, Square & Oblong Hole) & as per your Drawing |
| Grades | |
| Stainless Steel | ASTM / ASME 201, 202, 301, 304, 304L, 310, 310S, 316L, 316TI, 317, 317L, 321, 347, 409, 409M, 409L, 410, 410S, 420, 430, 431, 441, 444, 446, 17.4PH, 904L, AISI 302, AISI 303/303SE, AISI 304/304L, AISI 316/316L, AISI 321, AISI 440C, 13-8-MO, 15-5-PH, 17-4-PF, 17-7-PH |
| Aluminium | 1050,1100, 2017, 7150, 7178, 7575, 2050, 7085, 2011 A92011, 2014A A92014, 2024 A92024, 2219, 5052 A95052, 5083 A95083, 5754, 6061 A96061 A86061, 6063, 6082 A96082, 7071 7020, 7050 A97050, 7075 A97075 A87075, 7175, 2024 T3 & T0, 2024 T351, 2014 T6 2024 T351/T4, 2024 T3511/T3, 2024 T3511/0, 2024, 2124 T851, 6061 T6/T4/T0, 6061 T651/652, 6061 T651/ T6, 6061 T6511, 6061 T6511, 7050 T7451, 7075-T6,T76, 7075 T651/ T7351, 7075 T651/ T7351, 7075 T6/ T651/ T7351, 7075 T6/T651/73511, 7075 T73511/0, 7475 T7351 |
| Super Duplex Steel | S32750 |
| Duplex Steel | ASTM / ASME SA 790 UNS NO S 31803 , S 32205 , S 32550 , S 32750 , S 32760. |
| Carbon Steel | ASTM/ASME A234 WPB / A860 – MSS-SP-75 WPHY 42 / 46 / 52 / 56 / 60 / 65 / 70 |
| Alloys Steel | ASTM A234 WP1 / WP5 / WP9 / WP11 / WP22 / WP91, SAE 4130, SAE 4340 |
| Nickel Alloys | Nickel Alloys 200, Nickel Alloys 201, ALLOY 400, ALLOY 600, ALLOY 602CA, ALLOY 718, ALLOY C276, HASTELLOY B3, HASTELLOY C2000, HASTELLOY C22, HASTELLOY G30, HASTELLOY X, HAYNES HR120, HAYNES HR160 |
| Titanium | Grade 1, Grade 4, Grade 5(Ti 6Al-4V), Grade 6(Ti 5Al-2.5Sn), Grade 7, Grade 11, Grade 12, 8Ai-1Mo-1V, Grade 9(3Al-2.5V), 6Al-6V-25n, 6Al-2Sn-4Zr-2Mo, 6Al-7Nb, Grade 23(Ti 6AL-4V ELI), Grade 5 ELI, TITANIUM 6AL4V (GRADE 5) AIRCRAFT QUALITY, TITANIUM (GRADE 2) COMMERCIAL |
| Inconel | Inconel 600, Inconel 601, Inconel 625, Inconel 625LCF, Inconel 686, Inconel 718, Inconel 800, Inconel 825, Inconel X-750 , Inconel 690, Inconel 602, Inconel 617, Inconel 925, Inconel A-289, Inconel AL-6XN, AL-904L |
| Hastelloy | Hastelloy C-22, Hastelloy C-276, Hastelloy C-2000, Hastelloy C-4, Hastelloy X, Hastelloy B, Hastelloy N, Hastelloy G |
| Molybdenum | ASTM / ASME A 182 GR F 5, F 9 , F 11 , F 12 , F 22 , F 91, ASTM B387, Ferro Molybdenum |
| Cobalt | Cobalt HS-6, Cobalt HS-4, Cobalt HS-25, Sterlite Grade 1, Sterlite Grade 6, Sterlite Grade 12, Sterlite Grade 21 |
| Niobium | ASTM B394, R04200 R04210 |
| Nimonic | Nimonic75, Nimonic80, Nimonic85, Nimonic90, Nimonic263, etc |
| Tungsten | W1 WAl1, W61, etc, Carbonide Tungsten, Copper Tungsten, Nickel Tungsten |
| Nichrome | Nichrome90, Nichrome80, Nichrome80A, Nichrome RW80, Nichrome75, etc |
| Magnesium | Magnesium AL017100, AL017140, AL017150, AL017160, AL017200, AL017210, AL017250, etc. |
| Tantalum | Tantalum – Grade 1. |
| Monel | Monel 400, Monel k500 |
| MU-METAL | MU-METAL |
| Zirconium | Zirconium 702, Zirconium 705,Zirconium 705, Zirconium-2, Zirconium-4 |
| Beryllium Copper | Alloy 25 UNSC17200 |
| Copper Alloys | C 11000, C 10200, C 12200, C 51100, C 51000, C 51900, C 52000, C 52100, C 74500, C 75700, C 75400, C 76400, C 77000, C 21000, C 22000, C 23000, C 24000, C 26000, C 26800, C 27000, C 27200, C 28000, CDA 172 COPPER BERYLLIUM, CDA 630 NICKEL ALUMINUM BRONZE |
| Non-Ferrous Metals | Copper Chromium, Copper Alloys, cupro Nickel, Bronze, Nickel Aluminium Bronze, Manganese Bronze, Phosphorus Bronze |
For professionals working in the engineering, fabrication, and construction industries, the MS Sheet Weight Chart in kg, mm, and PDF is a vital resource. It guarantees accurate material estimation, minimizes waste, and expedites project planning. Manufacturers and purchasers can use this chart to make well-informed choices regarding sheet thickness, size, and overall weight, guaranteeing accuracy and cost effectiveness in every project.
