Require a reference for a good Stainless Steel 409M sheet? The following guide includes all the details of this sheet, including the SS 409M Sheet Weight Chart, dimensional specifications, chemical composition, mechanical properties, and ASTM A240 tolerances. It is created to assist engineers, fabricators, and industrial purchasers to know how to compute material requirements, price, and logistics.
Stainless Steel 409M Sheet is employed in auto exhausts, ducting in industries, and in high-temperature structural applications because it has high levels of corrosion resistance, thermal stability and a titanium-stabilised ferritic structure. The comprehensive weight chart in kg and mm makes the project planning and estimation of materials easier.
What is a Stainless Steel 409M Sheet Weight Chart?
A Stainless Steel 409M Sheet weight Chart in Kg and mm is a record sheet used to find the theoretical weight of the sheets depending on:
- Thickness (mm)
- Width (mm)
- Length (mm)
- Density of SS 409M (approximately 7.7 g/cm³)
This chart is applied by fabricators, procurement teams, and engineers in order to estimate shipping weight, fabrication load, and costing of the project.

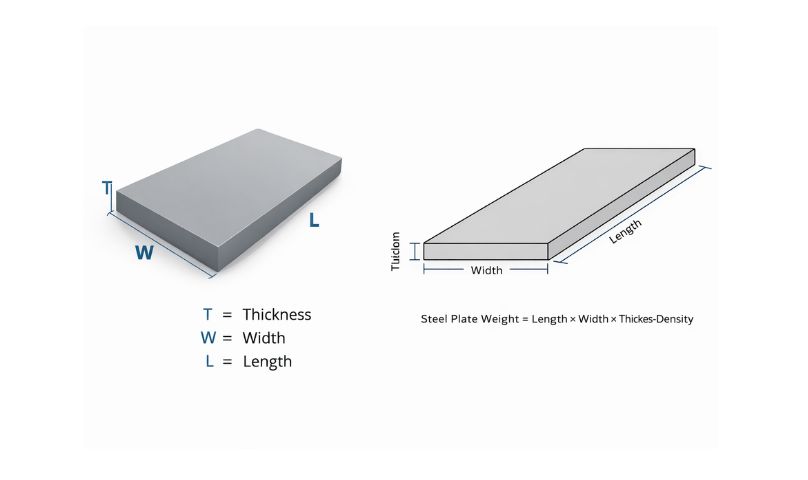

The general formula used for calculation is:
Weight (kg)=Length (m)×Width (m)×Thickness (mm)×7.7
Weight (kg)=Length (m)×Width (m)×Thickness (mm)×7.7
Many buyers also request the Stainless Steel 409M Sheet weight chart in PDF format for quick reference during procurement and site planning.
Stainless Steel 409M Sheets Specifications
The technical standards of SS 409M sheets should also be known before one reviews the dimensional and weight data.
Grade Specifications for Stainless Steel 409M Sheets
Stainless Steel 409M sheets are produced as per the internationally appropriate standards so as to guarantee uniform quality, mechanical performance and chemical compositions. These are the standards which outline the manufacturing process, the chemical allowances, the mechanical specifications, the tolerance of the dimensions as well as inspection standards of industrial use.
| Parameter | Details | Description / Scope |
| Material Grade | Stainless Steel 409M | Ferritic stainless steel with titanium stabilization |
| ASTM Standard | ASTM A240 | Standard specification for chromium and chromium-nickel stainless steel plate, sheet, and strip for pressure vessels and general applications |
| ASME Standard | ASME SA 240 | Boiler and pressure vessel code equivalent of ASTM A240 |
| UNS Designation | S40909 | Unified Numbering System (UNS) identification for SS 409M |
| EN Number | 1.4517 | European EN equivalent grade |
| DIN Equivalent | X10CrTi12 | German DIN material designation |
| Material Type | Ferritic Stainless Steel | Magnetic stainless steel with good oxidation resistance |
| Stabilizing Element | Titanium (Ti) | Prevents carbide precipitation and improves weldability |
| Applicable Product Forms | Sheet, Plate, Coil, Strip | Supplied in hot rolled and cold rolled conditions |
| Manufacturing Standard | International Rolling & Annealing Standards | Produced under controlled heat treatment and finishing processes |
| Surface Finishes Available | 2B, BA, No.1, No.4, Matte, HL | Various finishes for industrial and structural applications |
| Edge Condition | Mill Edge (ME), Slit Edge (SE) | Based on production and cutting method |
| Thickness Range | 0.5 mm – 5.0 mm (standard stock) | Custom thickness available upon request |
| Width Range | 1000 mm – 1500 mm (standard) | Custom widths available |
| Length Range | 2000 mm – 3000 mm (standard) | Custom cut-to-length options available |
| Compliance | Industrial & Automotive Standards | Suitable for exhaust systems, ducting, and structural components |
These standards define manufacturing requirements, chemical limits, mechanical performance, and tolerances.
Chemical Properties of SS 409M Sheets
SS 409M sheets have a well-balanced chemical composition that provides fantastic corrosion resistance and structural stability especially in high-temperature exhaust application. Important ones are Chromium (Cr) of 10.5-11.75 percent, Titanium (Ti) of 0.25-0.60 percent, Carbon (C) of 0.08 percent maximum, Manganese (Mn) of 1.00 percent maximum, Silicon(Si) of 1.00 percent maximum, Phosphorus(P) of 0.045 percent maximum, Sulfur(S) of 0.03 percent maximum, and Iron(Fe) of balance.
| Element | Composition (%) |
| Chromium (Cr) | 10.5 – 11.75 |
| Titanium (Ti) | 0.25 – 0.60 |
| Carbon (C) | 0.08 max |
| Manganese (Mn) | 1.00 max |
| Silicon (Si) | 1.00 max |
| Phosphorus (P) | 0.045 max |
| Sulfur (S) | 0.03 max |
| Iron (Fe) | Balance |
The titanium content stabilizes the ferritic structure and improves weldability.
Mechanical Properties of SS 409M Sheets
The SS 409M sheets are also mechanically strong sheets that are suitable in load bearing applications with a minimum tensile strength of 450 Mpa, Yield Strength of 205 Mpa, Elongation of 20 and a maximum hardness of 183 HB which is important when determining the thickness of the material used.
| Property | Value |
| Tensile Strength | 450 MPa (min) |
| Yield Strength | 205 MPa (min) |
| Elongation | 20% (min) |
| Hardness | 183 HB (max) |
These properties make SS 409M suitable for moderate strength structural and high-temperature applications.
SS 409M Sheet Equivalent Grades
SS 409M sheets have the same grades in order to ensure global procurement seamlessly including UNS S40909, EN 1.4517, and DIN X10CrTi12- to assure the compatibility of materials across international standards and projects.
| Standard | Equivalent Grade |
| UNS | S40909 |
| EN | 1.4517 |
| DIN | X10CrTi12 |
Equivalent grades ensure compatibility in international projects.
Stainless Steel 409M Sheet Dimensional Chart
The Stainless Steel 409M Sheet Dimensional Chart provides the most popular thickness of all, as well as, their standard widths and lengths, which are industrial friendly in terms of handling, cutting, and shipping. The sizes are common with manufacturers and suppliers and have the choices of mill edges or trimmed sides, depending on the quantity of orders. Lighter-weight components are well served by finer gauges such as 0.5 mm, whilst heavier items up to 5.0 mm are structural in nature- it is always worth confirming with your supplier about what is in stock and/or what can be custom cut to a certain size to fit the project.
| Thickness (mm) | Standard Width (mm) | Standard Length (mm) |
| 0.5 | 1000 | 2000 |
| 0.8 | 1000 | 2000 |
| 1.0 | 1250 | 2500 |
| 1.5 | 1250 | 2500 |
| 2.0 | 1500 | 3000 |
| 3.0 | 1500 | 3000 |
| 4.0 | 1500 | 3000 |
| 5.0 | 1500 | 3000 |
Custom dimensions are available based on project requirements.
SS 409M Sheet Weight Chart (Kg)
The SS 409M sheet weight chart (sheet size 1000 mm x 2000 mm) has weights of 7.7 kg at 0.5 mm and 77.0 kg at 5.0 mm and the important values are 15.4 kg (1.0 mm), 30.8 kg (2.0 mm) and 46.2 kg (3.0 mm)–calculated to bring on material at the right time.
| Thickness (mm) | Weight (kg per sheet) |
| 0.5 | 7.7 |
| 0.8 | 12.3 |
| 1.0 | 15.4 |
| 1.5 | 23.1 |
| 2.0 | 30.8 |
| 3.0 | 46.2 |
| 4.0 | 61.6 |
| 5.0 | 77.0 |
Weight values are theoretical and may slightly vary depending on manufacturing tolerance.
ASTM A240 SS 409M Sheet Tolerances
According to ASTM A240, tolerances for stainless steel sheets depend on thickness and width. Typical thickness tolerance ranges:
- Up to 1.0 mm: ±0.10 mm
- 1.0 mm to 2.0 mm: ±0.15 mm
- Above 2.0 mm: ±0.25 mm
Flatness and width tolerances are also defined under ASTM A240 standards.
Stainless Steel 409M Sheet Weight Chart in PDF
Many engineers and procurement managers prefer downloading the Stainless Steel 409M Sheet weight chart in PDF for:
- On-site fabrication reference
- Cost estimation
- Shipping weight calculation
- Tender documentation
A printable PDF version typically includes:
- Dimensional chart
- Weight calculation formula
- ASTM A240 tolerances
- Chemical and mechanical properties
Conclusion
The Stainless Steel 409M Sheet Weight Chart is a convenient and invaluable resource of proper material estimation, effective procurement, and cost-effective project running. The result of this combination of dimensional data, theoretical weight calculations, ASTM A240 tolerances, and the step-by-step chemical and mechanical specifications is a complete technical guide that engineers, fabricators and industrial buyers use. Be it the calculation of shipping loads, fabrication planning, or the documentation of tender, access to accurate weight and size data ensures a great deal of error reduction, helps to avoid shortages in the materials, and overall gives better cost control. The addition of common standards like ASTM A240, ASME SA 240, UNS S40909 and EN 1.4517, also offers international compatibility and quality assurance.
Having a titanium-stabilized ferritic structure, well balanced chromium content and reliable strength characteristic, SS 409M remains to be the choice of material used in automotive exhaust, industrial ducting, and in high-temperature structural systems. It is technically reliable since it combines corrosion resistance, thermal stability, weldability, and moderate strength, and is economical. Through the above detailed weight chart, and dimensional guide, the project stakeholders will be able to make informed decisions, optimise the logistics and also make sure that the project is adhering to the international standards. Finally, SS 409M sheets provide an effective, performance-based solution to the industries that require durability, precision and long-term value.
