One of the most common flat products in contemporary engineering and construction is made of Stainless Steel Sheet Weight Chart. They are corrosion resistant, strong, and have a clean surface finish which makes them apply to industrial machines, building interiors and exteriors. Nevertheless, choosing the appropriate sheet to work on a project, professionals should be aware of the effects of the thickness and size of materials on the issue of handling, installation, and transportation.
On a fabrication job and project site, an idea of the mass of the material, on average, can be known and this will assist the teams to organize the ways of lifting, storage area and cutting. It further enables the procurement departments to make comparisons of the quotations appropriately and not to be confused when suppliers are offering prices per weight and not the number of pieces.
Significance in Industrial Planning.
In large scale industrial works, the sheets of stainless steel are not usually bought without any reason. Mechanical performance and structural load consideration is carried out by the engineers before material thickness is finalized. A thin sheet could ease under pressure and oversized sheet adds to the cost and complicates fabrication.
As an illustration, during pressure vessels or storage tanks, sheet choice has a direct impact on the performance of welding and durability in the long term. In the same way, in architectural cladding, correct thickness of panels means that they are not vibrated or distorted flat. Due to this reason, fabricators need to have a clear insight on the material heaviness in the early design stage.

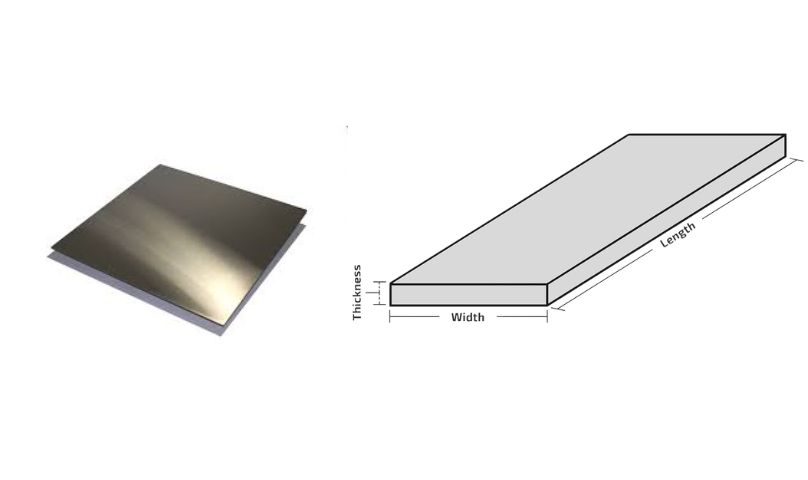

Sheet And Plate Weight Chart in kg, mm
| Sheet And Plate Weight Chart in kg, mm Specifications | |||||
| Plate Thickness (mm) | Weight (kg/m) | kg/meter (width 1200mm) | kg/meter (width 1500mm) | kg/meter (width 1800mm) | kg/meter (width 2400mm) |
| 3 | 23.55 | 28.3 | 35.3 | 42.4 | 56.5 |
| 4 | 31.4 | 37.7 | 47.1 | 56.5 | 75.4 |
| 5 | 39.25 | 47.1 | 58.9 | 70.7 | 94.2 |
| 6 | 47.1 | 56.5 | 70.7 | 84.8 | 113 |
| 8 | 62.8 | 75.4 | 94.2 | 113 | 150.7 |
| 10 | 78.5 | 94 | 118 | 141 | 188 |
| 12 | 94.2 | 113 | 141 | 170 | 226 |
| 16 | 125.6 | 151 | 188 | 226 | 301 |
| 20 | 157 | 188 | 236 | 283 | 377 |
| 22 | 172.7 | 207 | 259 | 311 | 415 |
| 25 | 196.25 | 236 | 294 | 353 | 471 |
| 28 | 219.8 | 264 | 330 | 396 | 528 |
| 32 | 251.2 | 301 | 377 | 452 | 603 |
| 36 | 282.6 | 339 | 424 | 509 | 678 |
| 40 | 314 | 377 | 471 | 565 | 754 |
| 45 | 353.25 | 424 | 530 | 636 | 848 |
| 50 | 392.5 | 471 | 589 | 707 | 942 |
| 55 | 431.75 | 518 | 648 | 777 | 1036 |
| 60 | 471 | 565 | 707 | 848 | 1130 |
| 65 | 510 | 612 | 765 | 918 | 1224 |
| 70 | 549.5 | 659 | 824 | 989 | 1319 |
| 75 | 588.75 | 707 | 883 | 1060 | 1413 |
| 80 | 628 | 754 | 942 | 1130 | 1507 |
| 90 | 706.5 | 848 | 1060 | 1272 | 1696 |
| 100 | 785 | 942 | 1178 | 1413 | 1884 |
Effect on Fabrication and Machining.
The physical properties of the Stainless Steel Sheet Weight Chart are very critical in cutting, bending and forming processes. Heavy sheets will need more powerful machines and stronger tooling whereas thin sheets will need very fine control to avoid warping. Workshops tend to organize their daily production schedule based on the capability of handling material.
The heavy weights will need cranes or vacuum lifters; the light ones may be moved by hand. Such a difference has a great impact on the labor requirements and the safety planning. Technicians would be in a position to prepare the right equipment and prevent accidents at work places when they are aware of the anticipated heaviness, in advance.
Role in Transportation and Storage.
Another significant aspect that stainless steel sheet choice has is transportation. The logistics teams should determine the number of sheets that can be loaded into a truck or a container without overloading. Poor estimation may result in late delivery, fines or driving under unsafe conditions.
Sheet characteristics are also required in storage within warehouses. Those stacks that are heavier need to have reinforced racks whereas the ones that are lighter than the sheets can be placed on regular pallets. With proper planning, there are no cases of bending, scratches and unnecessary damages during handling.
Sheet And Plate Thickness and Weight Chart in inches – Imperial Units
| Nominal Size Thickness(inches) | Weight(lb/ft2) |
| 3/16 | 7.65 |
| 1/4 | 10.2 |
| 5/16 | 12.8 |
| 3/8 | 15.3 |
| 7/16 | 17.9 |
| 1/2 | 20.4 |
| 9/16 | 22.9 |
| 5/8 | 25.5 |
| 11/16 | 28.1 |
| 3/4 | 30.6 |
| 13/16 | 33.2 |
| 7/8 | 35.7 |
| 1 | 40.8 |
| 1 1/8 | 45.9 |
| 1 1/4 | 51.0 |
| 1 3/8 | 56.1 |
| 1 1/2 | 61.2 |
| 1 5/8 | 66.3 |
| 1 3/4 | 71.4 |
| 1 7/8 | 76.5 |
| 2 | 81.6 |
| 2 1/8 | 86.7 |
| 2 1/4 | 91.8 |
| 2 1/2 | 102 |
| 2 3/4 | 112 |
| 3 | 122 |
| 3 1/4 | 133 |
| 3 1/2 | 143 |
| 3 3/4 | 153 |
| 4 | 163 |
| 4 1/4 | 173 |
| 4 1/2 | 184 |
| 5 | 204 |
| 5 1/2 | 224 |
| 6 | 245 |
| 6 1/2 | 265 |
| 7 | 286 |
| 7 1/2 | 306 |
| 8 | 326 |
| 9 | 367 |
| 10 | 408 |
Interindustry Applications.
The stainless steel sheets are applied in various fields because of their strength and cleanliness.
Industrial Sector:
Applications Are in heat exchangers, chemical tanks, pipelines and marine equipment which require corrosion resistance.
Commercial Sector:
Use in lifts, wall panels and kitchen appliances and decorative structures due to their hygienic look.
Manufacturing Sector:
Applied in car panels, machinery covers, and parts of the fabrics where it is necessary to have both power and accuracy.
The difference in the thickness levels of each application is to balance the durability and the ease of installation.
Proper Understanding of Material Benefits.
Being able to know clearly the characteristics of sheets is beneficial in a number of ways. It will assist in minimizing the amount of the material to be wasted in the cutting process, and the quotation will be accurate both between the suppliers and the buyers. Contractors can make proper plans about the number of manpower required and they can avoid unnecessary overtime. Most importantly, it provides structural safety, which is the correspondence of material capability and the load conditions.
Applications of Stainless Steel Sheets
Stainless steel sheets are used in multiple sectors because of corrosion resistance and strength.
Industrial Uses:
- Chemical processing plants
- Oil & gas pipelines
- Heat exchangers
- Boilers and pressure vessels
Commercial Uses:
- Elevators and cladding
- Kitchen equipment
- Hospital furniture
- Food processing tables
Fabrication Uses:
- Tanks and silos
- Machine guards
- Automotive parts
- Structural supports
Sheet And Plate Thickness and Weight Chart in mm – Metric Units
| Plate Thickness(mm) | Weight(kg/m2) |
| 1.6 | 12.6 |
| 2.0 | 15.7 |
| 2.5 | 19.6 |
| 3 | 23.6 |
| 3.2 | 25.1 |
| 4 | 31.4 |
| 5 | 39.3 |
| 6 | 47.1 |
| 8 | 62.8 |
| 10 | 78.5 |
| 12.5 | 98.1 |
| 15 | 118 |
| 20 | 157 |
| 22.5 | 177 |
| 25 | 196 |
| 30 | 236 |
| 32 | 251 |
| 35 | 275 |
| 40 | 314 |
| 45 | 353 |
| 50 | 393 |
| 55 | 432 |
| 60 | 471 |
| 65 | 510 |
| 70 | 550 |
| 75 | 589 |
| 80 | 628 |
| 90 | 707 |
| 100 | 785 |
| 110 | 864 |
| 120 | 942 |
| 130 | 1051 |
| 150 | 1178 |
| 160 | 1256 |
| 180 | 1413 |
| 200 | 1570 |
| 250 | 1963 |
Conclusion
The knowledge of Stainless Steel Sheet properties is the key to the efficient project implementation. Since it is used in purchasing decisions, up to fabrication, transportation, and final installation, all these processes require the selection of the right material thickness and material size. The proper planning will help to make the events safer, less expensive to operate and help to make the product even better. When engineers and buyers put these factors into consideration at an earlier stage the projects run without any problems and the materials will serve and be reliable over the years.
