December 30, 2025Nuts Fastener Weight Chart in KG
The correct fastener weight data is a critical factor in the engineering, construction, and manufacturing practice. The Nuts Weight Chart in kg and mm gives a good guide in determining the actual weight of the varying nut sizes and forms. This information is particularly helpful to engineers, fabricators and purchasing teams in their load assessment, material planning, and cost estimation of projects. To make it more accessible, one may use the Nuts Fastener Weight Chart PDF as a fast reference file when designing or purchasing or on the site.
It is important to know the dimensions and weights of nuts so that the right fastener to be used in a particular application can be identified. The Nut Weight Chart includes standard measures of nut types, grades, and materials, which assists its users in the preservation of the consistency, enhancement of structural safety, and minimisation of the hazardous cases of unsuitable installations. This renders it an excellent resource to industry practitioners as well as people engaged in work involving fabrication or maintenance.
Besides, the standardised nut weight data is useful in enhancing the smooth running of the project because it facilitates inventory management and logistics planning. The knowledge of the exact weight of fasteners allows mass handling of bulks, transportation, and storage with minimum wastage of material. A well-organised nut weight chart will facilitate the effectiveness, precision, and durability of fastener choice and use whether in large industrial applications or in the smaller-scale project of DIY.

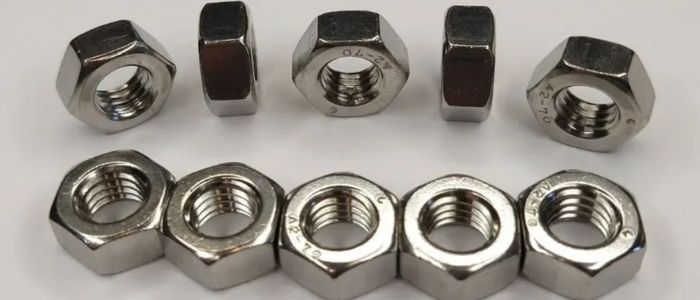

Nut Weight Chart in mm, Kg & PDF
| NUTS | |||||||||||||
| APPROX. WEIGHT IN KGS FOR 100 NOS. | |||||||||||||
| SIZE | OLD SPEC IS 1363/67 | NEW SPEC IS 1363/92 | HEIGHT = DIA NUTS | HEX LOCK NUTS IS 1364-84 | HSS NUTS IS: 6623 | Castle Nuts IS 2232-67 | Nylock Nuts Din 985 | SIZE | HEX NUTS BSW / BSF | HEX LOCK NUTS BSW / BSF | SQUARE NUTS – BSW | ASTM A-194
UNC HEAVY HEX NUTS |
|
| M2 | 0.011 | 1/8″ | 0.041 | ||||||||||
| M3 | 0.033 | 0.050 | 5/32″ | 0.053 | |||||||||
| M4 | 0.067 | 0.112 | 0.100 | 3/16″ | 0.133 | ||||||||
| M5 | 0.111 | 0.080 | 0.230 | 0.140 | 1/4″ | 0.323 | 0.190 | 0.340 | |||||
| M6 | 0.232 | 0.120 | 0.316 | 0.240 | 5/16″ | 0.510 | 0.340 | 0.654 | 0.758 | ||||
| M7 | 0.294 | 0.396 | 0.300 | 3/8″ | 0.817 | 0.510 | 0.966 | 1.370 | |||||
| M8 | 0.482 | 0.300 | 0.735 | 0.510 | 7/16″ | 1.389 | 0.930 | 1.683 | 2.000 | ||||
| M10 | 1.020 | 0.909 | 1.282 | 0.670 | 1.580 | 1.060 | 1/2″ | 2.222 | 1.430 | 2.677 | 2.959 | ||
| M12 | 1.590 | 1.389 | 1.942 | 1.090 | 2.000 | 1.720 | 5/8″ | 4.348 | 2.700 | 5.040 | 5.263 | ||
| M14 | 2.400 | 3.049 | 1.680 | 2.700 | 2.600 | 3/4″ | 7.184 | 4.800 | 8.818 | 8.621 | |||
| M16 | 3.081 | 3.333 | 3.906 | 1.800 | 6.040 | 3.890 | 3.400 | 7/8″ | 8.621 | 5.600 | 10.917 | 12.658 | |
| M18 | 4.448 | 5.814 | 2.690 | 5.750 | 4.500 | 1″ | 12.987 | 8.500 | 15.432 | 17.986 | |||
| M20 | 6.031 | 6.667 | 7.519 | 3.300 | 11.530 | 7.520 | 6.500 | 1.1/8″ | 18.182 | 11.800 | 23.364 | 26.316 | |
| M22 | 7.143 | 8.929 | 9.091 | 3.890 | 14.280 | 9.300 | 7.500 | 1.1/4″ | 26.596 | 17.200 | 33.333 | 34.247 | |
| M24 | 10.309 | 12.500 | 12.821 | 5.100 | 19.770 | 13.100 | 10.000 | 1.3/8″ | 37.879 | 23.000 | 44.248 | ||
| M27 | 15.432 | 18.657 | 8.150 | 28.230 | 19.200 | 16.200 | 1.1/2″ | 45.455 | 28.000 | 60.241 | |||
| M30 | 21.645 | 26.596 | 10.400 | 36.500 | 26.400 | 21.200 | 1.5/8″ | 71.429 | 73.529 | ||||
| M33 | 27.174 | 34.483 | 14.300 | 33.330 | 31.700 | 1.3/4″ | 71.429 | 46.000 | 90.909 | ||||
| M36 | 37.037 | 43.860 | 17.600 | 28.180 | 44.700 | 41.500 | 2″ | 81.967 | 54.000 | 135.135 | |||
| M39 | 47.619 | 57.471 | 24.000 | 58.400 | 49.900 | 2.1/4″ | 111.111 | 185.185 | |||||
| M42 | 57.471 | 73.529 | 27.500 | 71.000 | 62.800 | 2.1/2″ | 172.414 | 238.095 | |||||
| M45 | 72.464 | 92.593 | 37.000 | 86.000 | 77.100 | 2.3/4″ | 263.158 | 333.333 | |||||
| M48 | 92.593 | 113.636 | 42.800 | 106.000 | 99.800 | 3″ | 333.333 | 454.545 | |||||
| M52 | 108.696 | 138.889 | 52.000 | 130.000 | 0 BA | 0.270 | |||||||
| M56 | 131.579 | 166.667 | 2 BA | 0.126 | |||||||||
| M60 | 161.290 | 192.308 | |||||||||||
| M64 | 185.185 | 227.273 | |||||||||||
| M72 | 250.000 | 312.500 | |||||||||||
| M80 | 333.333 | ||||||||||||
| M90 | 454.545 | ||||||||||||
| M100 | 625.000 | ||||||||||||
The Nuts Weight Chart in kg/mm is an invaluable tool of those professionals who depend on the correctness of measurements of dimensions and weight in the mechanical and structural field. It also provides engineers and technicians with useful information on determining the design, fabrication, and installation by showing standardized weight values of the various nut sizes. This provides proper matching of components to load requirements contributing to better safety and performance of projects.
What is also crucial, the properly designed nut weight chart PDF makes it easy to plan the project and control the resources. It helps in establishing the correct estimation of materials, the possibility to have fewer orders, and easier coordination among the engineering, purchasing and site teams. With constant application of such a chart, there is increased accuracy, time saved and also this results in ease of operation of both heavy-duty industrial applications and also precision-based mechanical systems.
