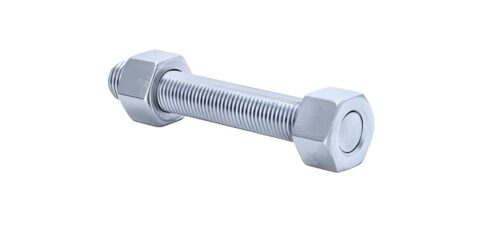

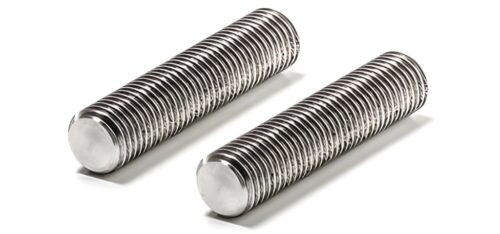

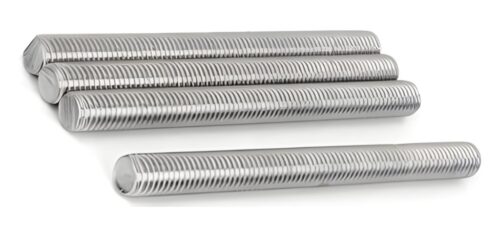

What Is a Stud Bolt?
A Stud Bolt is defined as a threaded rod with threads on each end, or fully threaded, and is used in conjunction with two nuts to join flanges or other components together. Stud bolts are different from other bolts in that they offer more even distribution of load and are best used in high-pressure and temperature applications. Stud bolts are used in valves, heat exchangers, and pressure vessels in pipelines, where strong joints are required.
Key Features:
- Threaded on both ends or fully threaded
- Provides uniform clamping force
- Suitable for high-pressure applications
- Easy to install and remove
- Available in various grades and coatings
Stud Bolt Specification
| Product | Specifications |
| Stud Bolt Types | Fully Threaded Stud Bolt, Double End Stud Bolt, Tap End Stud Bolt, B7 Stud Bolt, Stainless Steel Stud Bolt |
| Size Range | M6 to M100, Custom sizes available |
| Length Range | 50 mm to 5000 mm or as per customer requirement |
| Applicable Standards | ASTM A193, ASTM A320, ASTM A307, ASME B18.31.2, DIN 975, DIN 976, ISO 898 |
| Thread Type | Metric Thread, UNC, UNF, BSW, BSF |
| Material Grades | Stainless Steel 304, 316, 321, Alloy Steel B7, B16, Carbon Steel, Duplex & Super Duplex Steel |
| Manufacturing Process | Hot Forging, Cold Forging, CNC Machining, Thread Rolling |
| Surface Coatings | Zinc Plated, Hot Dip Galvanized (HDG), PTFE Coated, Teflon Coated, Black Oxide, Cadmium Plated, Xylan Coated |
| Finishing | Natural Finish, Zinc Plated, Hot Dip Galvanized, Phosphate Coated, Passivated |
Why Is a Stud Bolt Weight Chart Important?
The Stud Bolt Weight Chart in KG is an essential chart that every engineer, fabricator, and buyer should be familiar with. The accurate weight information is helpful in calculating the total quantity of bolts required. The weight information is also helpful in the piping system, where accurate weight information is required in planning the flange assembly. The weight chart is also helpful in export activities and in calculating the freight costs.

A reliable weight chart helps with:
- Accurate material quantity estimation
- Load and stress calculations
- Flange assembly planning
- Transportation and logistics cost estimation
- Project budgeting and procurement control
Incorrect weight estimation can lead to ordering errors, increased costs, or delays in project execution.

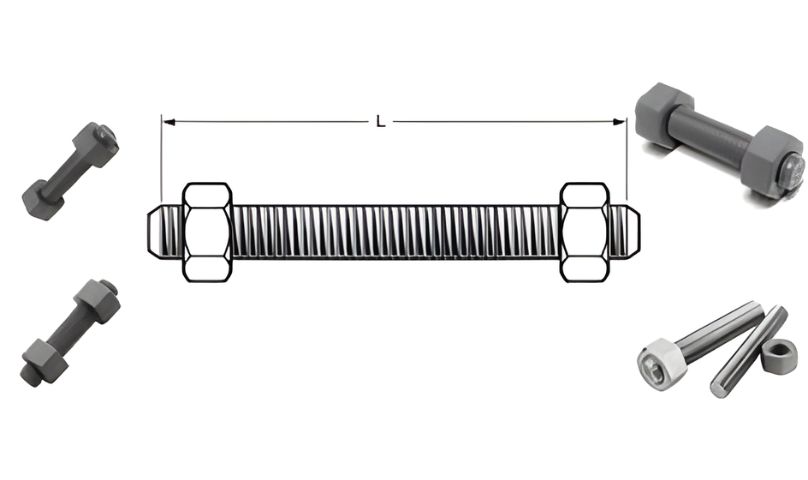

Stud Bolt Weight Chart
The weight of stud bolts varies depending on their diameter, length, and composition. The chart below is an approximate chart of carbon steel stud bolts.
Weight per Piece (kg)
| Diameter | Length (mm) | Weight (kg/pc) |
| M8 | 50 | 0.03 |
| M8 | 75 | 0.04 |
| M8 | 100 | 0.05 |
| M10 | 75 | 0.06 |
| M10 | 100 | 0.08 |
| M10 | 150 | 0.12 |
| M12 | 100 | 0.14 |
| M12 | 150 | 0.20 |
| M12 | q200 | 0.27 |
| M16 | 100 | 0.32 |
| M16 | 150 | 0.48 |
| M16 | 200 | 0.65 |
| M20 | 150 | 0.95 |
| M20 | 200 | 1.25 |
| M20 | 250 | 1.55 |
| M24 | 150 | 1.60 |
| M24 | 200 | 2.10 |
| M24 | 300 | 3.00 |
| M30 | 200 | 3.80 |
| M30 | 300 | 5.50 |
Weight per Meter (kg/m)
| Diameter | Weight (kg/m) |
| M8 | 0.40 |
| M10 | 0.62 |
| M12 | 0.89 |
| M16 | 1.58 |
| M20 | 2.47 |
| M24 | 3.55 |
| M30 | 5.55 |
Weight per 100 Pieces (kg)
| Diameter | Length Range | Weight (kg/100 pcs) |
| M8 | 50–100 mm | 3 – 5 |
| M10 | 75–150 mm | 6 – 12 |
| M12 | 100–200 mm | 14 – 27 |
| M16 | 100–200 mm | 32 – 65 |
| M20 | 150–250 mm | 95 – 155 |
| M24 | 150–300 mm | 160 – 300 |
| M30 | 200–300 mm | 380 – 550 |
Materials Available
The process of manufacturing stud bolts involves various materials depending on their applications, strength, heat resistance, and corrosion properties. These materials include carbon steel (ASTM A193 B7 & B7M) with excellent strength for general industrial purposes and stainless steel (grades 304, 316, and 316L) with excellent corrosion properties. In harsh working conditions, alloy steel is used for high-temperature applications due to its excellent properties in resisting extreme heat and pressure.
In critical working conditions, duplex and super duplex steels are used due to their excellent properties of strength and corrosion resistance. In such harsh working conditions, nickel-based materials such as Inconel, Monel, and Hastelloy are used. In addition, materials such as zinc coating, hot dip galvanizing, PTFE coating, and black oxide are used to enhance the properties of stud bolts.

Mertic Stud Bolt With 2 Nut Weights
| Dia/Length | STUD WITH TWO NUTS WEIGHT (Kg) PER 1 SET | |||||||||||||||||||||||||||
| M8 | M10 | M12 | M14 | M16 | M18 | M20 | M22 | M24 | M27 | M30 | M33 | M36 | M39 | M42 | M45 | M48 | M52 | M56 | M60 | M64 | M68 | M72 | M76 | M80 | M85 | M90 | M95 | |
| 50 | 0.028 | 0.053 | 0.076 | 0.112 | 0.147 | 0.198 | 0.261 | 0.318 | 0.423 | 0.593 | 0.801 | 1.009 | 1.319 | 1.665 | 2.083 | 2.546 | 3.087 | 3.710 | 4.414 | 5.161 | 6.056 | 6.998 | 8.015 | 9.154 | 10.304 | 11.704 | 14.420 | 16.171 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 55 | 0.030 | 0.055 | 0.079 | 0.117 | 0.153 | 0.206 | 0.272 | 0.331 | 0.438 | 0.612 | 0.824 | 1.037 | 1.354 | 1.706 | 2.132 | 2.602 | 3.151 | 3.787 | 4.501 | 5.261 | 6.172 | 7.129 | 8.163 | 9.321 | 10.484 | 11.909 | 14.650 | 16.429 |
| 60 | 0.032 | 0.058 | 0.083 | 0.121 | 0.160 | 0.215 | 0.282 | 0.343 | 0.453 | 0.631 | 0.848 | 1.066 | 1.390 | 1.748 | 2.182 | 2.659 | 3.216 | 3.864 | 4.589 | 5.361 | 6.287 | 7.261 | 8.310 | 9.488 | 10.664 | 12.113 | 14.880 | 16.686 |
| 65 | 0.033 | 0.060 | 0.086 | 0.126 | 0.166 | 0.223 | 0.292 | 0.356 | 0.468 | 0.650 | 0.871 | 1.095 | 1.425 | 1.790 | 2.231 | 2.716 | 3.280 | 3.941 | 4.676 | 5.461 | 6.403 | 7.393 | 8.458 | 9.656 | 10.845 | 12.318 | 15.110 | 16.943 |
| 70 | 0.035 | 0.063 | 0.090 | 0.131 | 0.173 | 0.231 | 0.302 | 0.369 | 0.483 | 0.670 | 0.894 | 1.123 | 1.460 | 1.832 | 2.280 | 2.773 | 3.345 | 4.018 | 4.764 | 5.561 | 6.518 | 7.525 | 8.605 | 9.823 | 11.025 | 12.522 | 15.340 | 17.200 |
| 75 | 0.036 | 0.065 | 0.093 | 0.136 | 0.180 | 0.239 | 0.313 | 0.382 | 0.498 | 0.689 | 0.918 | 1.157 | 1.496 | 1 874 | 2.330 | 2.830 | 3.410 | 4.095 | 4.851 | 5.662 | 6.634 | 7.656 | 8.753 | 9.990 | 11.205 | 12.727 | 15.571 | 17.457 |
| 80 | 0.038 | 0.068 | 0.097 | 0.141 | 0.186 | 0.247 | 0.323 | 0.395 | 0.512 | 0.708 | 0.941 | 1.181 | 1.531 | 1.916 | 2.379 | 2.887 | 3.474 | 4.172 | 4.938 | 5.762 | 6.750 | 7.788 | 8.900 | 10.158 | 11.386 | 13.931 | 15.801 | 17.714 |
| 85 | 0.039 | 0.070 | 0.101 | 0.146 | 0.193 | 0.256 | 0.333 | 0.407 | 0.527 | 0.727 | 0.964 | 1.209 | 1.566 | 1.957 | 2.428 | 2.944 | 3.539 | 4.249 | 5.026 | 5.862 | 6.865 | 7.920 | 9.048 | 10.325 | 11.566 | 13.135 | 16.031 | 17.971 |
| 90 | 0.041 | 0.073 | 0.104 | 0.151 | 0.199 | 0 264 | 0.344 | 0.420 | 0.541 | 0.747 | 0.988 | 1.238 | 1.601 | 1.999 | 2.477 | 3.001 | 3.604 | 4.326 | 5.113 | 5.962 | 6.981 | 8.052 | 9.195 | 10.492 | 11.746 | 13.340 | 16.261 | 18.229 |
| 95 | 0.042 | 0.075 | 0.108 | 0.156 | 0.206 | 0.272 | 0.354 | 0 433 | 0.557 | 0.766 | 1.011 | 1.267 | 1.637 | 2.041 | 2.527 | 3.058 | 3.668 | 4.403 | 5.201 | 6.062 | 7.096 | 8.183 | 9.343 | 10.660 | 11.927 | 13.544 | 16.491 | 18.486 |
| 100 | 0.044 | 0.077 | 0.111 | 0.161 | 0.212 | 0.280 | 0.364 | 0.446 | 0.572 | 0.785 | 1.034 | 1.295 | 1.672 | 2.083 | 2.576 | 3.115 | 3.733 | 4.480 | 5.288 | 6.162 | 7.212 | 8.315 | 9.490 | 10.827 | 12.107 | 13.749 | 16.721 | 18.743 |
| 105 | 0.045 | 0.080 | 0.115 | 0.165 | 0.219 | 0.288 | 0.375 | 0.459 | 0.587 | 0.804 | 1.058 | 1.324 | 1.707 | 2.125 | 2.625 | 3.172 | 3.798 | 4.557 | 5.375 | 6.262 | 7.328 | 8.447 | 9.638 | 10.994 | 12.287 | 13.953 | 16.951 | 19.000 |
| 110 | 0.047 | 0.082 | 0.118 | 0.170 | 0.226 | 0.296 | 0.385 | 0.471 | 0.602 | 0.824 | 1.081 | 1.353 | 1.743 | 2.167 | 2.675 | 3.229 | 3.862 | 4.634 | 5.463 | 6.362 | 7.443 | 8.579 | 9.785 | 11.162 | 12.468 | 14.158 | 17.181 | 19.257 |
| 115 | 0.048 | 0.085 | 0.122 | 0.175 | 0.232 | 0.305 | 0.395 | 0.484 | 0.617 | 0.843 | 1.104 | 1.381 | 1.778 | 2.209 | 2.724 | 3.286 | 3.927 | 4.711 | 5.550 | 6.462 | 7.559 | 8.710 | 9.933 | 11.329 | 12.648 | 14.362 | 17.411 | 19.514 |
| 120 | 0.050 | 0.087 | 0.125 | 0.180 | 0.239 | 0.313 | 0.405 | 0.497 | 0.632 | 0.862 | 1.127 | 1.410 | 1.813 | 2.250 | 2.773 | 3.343 | 3.992 | 4.788 | 5.638 | 6.562 | 7.674 | 8.842 | 10.080 | 11.496 | 12.828 | 14.567 | 17.641 | 19.771 |
| 125 | 0.052 | 0.090 | 0.129 | 0.185 | 0.245 | 0.321 | 0.416 | 0.510 | 0.647 | 0.881 | 1.151 | 1.439 | 1.849 | 2.292 | 2.823 | 3.400 | 4.056 | 4.865 | 5.725 | 6.663 | 7.790 | 8.974 | 10.228 | 11.664 | 13.009 | 14.771 | 17.871 | 20.028 |
| 130 | 0.053 | 0.092 | 0.132 | 0.190 | 0.252 | 0.329 | 0.426 | 0.523 | 0.661 | 0.901 | 1.174 | 1.467 | 1.884 | 2.334 | 2.872 | 3.457 | 4.121 | 4.942 | 5.812 | 6.763 | 7.906 | 9.106 | 10.375 | 11.831 | 13.189 | 14.975 | 18.101 | 20.286 |
| 135 | 0.055 | 0.095 | 0.136 | 0.195 | 0.258 | 0.337 | 0.436 | 0.535 | 0.676 | 0.920 | 1.197 | 1.491 | 1.919 | 2.376 | 2.921 | 3.514 | 4.186 | 5.019 | 5.900 | 6.863 | 8.021 | 9.237 | 10.523 | 11.998 | 13.370 | 15.180 | 18.331 | 20.543 |
| 140 | 0.056 | 0.097 | 0.139 | 0.200 | 0.265 | 0.346 | 0.447 | 0.548 | 0.691 | 0.939 | 1.221 | 1.525 | 1.954 | 2.418 | 2.970 | 3.571 | 4.250 | 5.096 | 5.987 | 6.963 | 8.137 | 9.369 | 10.670 | 12.166 | 13.550 | 15.384 | 18.561 | 20.800 |
| 145 | 0.058 | 0.100 | 0.143 | 0.205 | 0.272 | 0.354 | 0.457 | 0.561 | 0.706 | 0.958 | 1.244 | 1.553 | 1.990 | 2.460 | 3.020 | 3.628 | 4.315 | 5.173 | 6.075 | 7.063 | 8.252 | 9.501 | 10.818 | 12.333 | 13.730 | 15.589 | 18.791 | 21.057 |
| 150 | 0.059 | 0.102 | 0.146 | 0.210 | 0.278 | 0.362 | 0.467 | 0.574 | 0.721 | 0.978 | 1.267 | 1.582 | 2.025 | 2.502 | 3.069 | 3.685 | 4.380 | 5.250 | 6.162 | 7.163 | 8.368 | 9.633 | 10.965 | 12.504 | 13.911 | 15.793 | 19.021 | 21.314 |
| 155 | 0.061 | 0.104 | 0.150 | 0.214 | 0.285 | 0.370 | 0.478 | 0.587 | 0.736 | 0.997 | 1.291 | 1.611 | 2.060 | 2.543 | 3.118 | 3.741 | 4.444 | 5.327 | 6.249 | 7.263 | 8.484 | 9.764 | 11.113 | 12.668 | 14.091 | 15.998 | 19.251 | 21.571 |
| 160 | 0.062 | 0.107 | 0.153 | 0.219 | 0.291 | 0 378 | 0.488 | 0.599 | 0 751 | 1.016 | 1.314 | 1.639 | 2.096 | 2.585 | 3.168 | 3.798 | 4.509 | 5.404 | 6.337 | 7.363 | 8.599 | 9.896 | 11.260 | 12.835 | 14.271 | 16.202 | 19.481 | 21.828 |
| 165 | 0.064 | 0.109 | 0.157 | 0.224 | 0.298 | 0.387 | 0.498 | 0.612 | 0.766 | 1.035 | 1.337 | 1.668 | 2.131 | 2.627 | 3.217 | 3.855 | 4.573 | 5.481 | 6.424 | 7463 | 8.715 | 10.028 | 11.408 | 13.003 | 14.452 | 16.407 | 19.711 | 22.086 |
| 170 | 0.065 | 0.112 | 0.160 | 0.229 | 0.304 | 0.395 | 0.508 | 0.625 | 0.781 | 1.055 | 1.361 | 1.697 | 2.166 | 2.669 | 3.266 | 3.912 | 4.638 | 5.558 | 6.512 | 7.563 | 8.830 | 10.160 | 11.555 | 13.170 | 14.632 | 16.611 | 19.941 | 22.343 |
| 175 | 0.067 | 0.114 | 0.164 | 0.234 | 0.311 | 0.403 | 0.519 | 0.638 | 0.796 | 1.074 | 1.384 | 1.725 | 2.202 | 2.711 | 3.316 | 3.969 | 4.703 | 5.635 | 6.599 | 7.664 | 8.946 | 10.291 | 11.703 | 13.337 | 14.812 | 16.815 | 20.171 | 22.600 |
| 180 | 0.069 | 0.117 | 0.168 | 0.239 | 0.318 | 0.411 | 0.529 | 0.651 | 0.810 | 1.093 | 1.407 | 1.754 | 2.237 | 1.753 | 3.365 | 4.026 | 4.767 | 5.712 | 6.686 | 7.764 | 9.062 | 10.423 | 11.850 | 13.505 | 14.993 | 17.020 | 20.401 | 22.857 |
| 185 | 0.070 | 0.119 | 0.171 | 0.244 | 0.324 | 0.419 | 0.539 | 0.663 | 0.825 | 1.112 | 1.430 | 1.783 | 2.272 | 2.794 | 3.414 | 4.083 | 4.832 | 5.789 | 6.774 | 7.864 | 9.177 | 10.555 | 11.998 | 13.672 | 15.173 | 17.224 | 20.631 | 23.114 |
| 190 | 0.072 | 0.122 | 0.175 | 0.249 | 0.331 | 0.427 | 0.550 | 0.676 | 0.840 | 1.132 | 1.454 | 1.811 | 2.307 | 2.836 | 3.463 | 4.140 | 4.897 | 5.866 | 6.861 | 7.964 | 9.293 | 10.687 | 12.145 | 13.839 | 15.353 | 17.429 | 20.861 | 23.371 |
| 195 | 0.073 | 0.124 | 0.178 | 0.254 | 0.337 | 0.436 | 0.560 | 0.689 | 0.855 | 1.151 | 1.477 | 1.840 | 2.343 | 2.878 | 3.513 | 4.197 | 4.961 | 5.943 | 6.949 | 8.064 | 9.408 | 10.818 | 12.293 | 14.007 | 15.534 | 17.633 | 21.091 | 23.628 |
| 200 | 0.075 | 0.126 | 0.182 | 0.258 | 0.344 | 0.444 | 0.570 | 0.702 | 0.870 | 1.170 | 1.500 | 1.869 | 2.378 | 2.920 | 3.562 | 4.254 | 5.026 | 6.020 | 7.036 | 8.164 | 9.524 | 10.950 | 12.440 | 14.174 | 15.714 | 17.838 | 21.321 | 23.886 |
| 205 | 0.076 | 0.129 | 0.185 | 0.263 | 0.350 | 0.452 | 0.581 | 0.715 | 0.885 | 1.189 | 1.524 | 1.897 | 2.413 | 2.962 | 3.611 | 4.311 | 5.091 | 6.097 | 7.123 | 8.264 | 9.640 | 11.082 | 12.588 | 14.341 | 15.895 | 18.042 | 21.551 | 24.143 |
| 210 | 0.078 | 0.131 | 0.189 | 0.268 | 0.357 | 0.460 | 0.591 | 0.727 | 0.900 | 1.209 | 1.547 | 1.926 | 2.449 | 3.004 | 3.661 | 4.368 | 5.155 | 6.174 | 7.211 | 8.364 | 9.755 | 11.214 | 12.735 | 14.509 | 16.075 | 18.246 | 21.781 | 24.400 |
| 215 | 0.079 | 0.134 | 0.192 | 0.273 | 0.364 | 0.468 | 0.601 | 0.740 | 0.915 | 1.228 | 1.570 | 1.955 | 2.484 | 3.046 | 3.710 | 4.425 | 5.220 | 6.251 | 7.298 | 8.464 | 9.871 | 11.345 | 12.883 | 14.676 | 16.255 | 18.451 | 22.012 | 24.657 |
| 220 | 0.081 | 0.136 | 0.196 | 0.278 | 0.370 | 0.477 | 0.611 | 0.753 | 0.930 | 1.247 | 1.594 | 1.983 | 2.519 | 3.087 | 3.759 | 4.482 | 5.285 | 6.328 | 7.386 | 8.564 | 9.986 | 11.477 | 13.030 | 14.843 | 16.436 | 18.655 | 22.242 | 24.914 |
| 225 | 0.082 | 0.139 | 0.199 | 0.283 | 0.377 | 0.485 | 0.622 | 0.766 | 0.945 | 1.266 | 1.617 | 2.012 | 2.555 | 3.129 | 3.809 | 4.539 | 5.349 | 6.405 | 7.473 | 8.665 | 10.102 | 11.609 | 13.178 | 15.011 | 16.616 | 18.860 | 22.472 | 25.171 |
| 230 | 0.084 | 0.141 | 0.203 | 0.288 | 0.383 | 0.493 | 0.632 | 0.779 | 0.959 | 1.286 | 1.640 | 2.041 | 2.590 | 3.171 | 3.858 | 4.596 | 5.414 | 6.482 | 7.560 | 8.765 | 10.218 | 11.741 | 13.325 | 15.178 | 16.796 | 19.064 | 22.702 | 25.428 |
| 235 | 0.086 | 0.144 | 206.0 | 0.293 | 0.390 | 0.501 | 0.642 | 0.791 | 0.974 | 1.305 | 1.664 | 2.069 | 2.625 | 3.213 | 3.907 | 4.653 | 5.479 | 6.559 | 7.648 | 8.865 | 10.333 | 11.872 | 13.473 | 15.345 | 16.977 | 19.269 | 22.932 | 25.686 |
| 240 | 0.087 | 0.146 | 0.210 | 0.298 | 0.396 | 0.509 | 0.653 | 0.804 | 0.989 | 1.324 | 1.687 | 2.098 | 2.660 | 3.255 | 3.956 | 4.710 | 5.543 | 6.636 | 7.735 | 8.965 | 10.449 | 12.004 | 13.620 | 15.513 | 17.157 | 19.473 | 23.162 | 25.943 |
| 245 | 0.089 | 0.148 | 0.213 | 0.302 | 0.403 | 0.517 | 0.663 | 0.817 | 1.004 | 1.343 | 1.710 | 2.127 | 2.696 | 3.297 | 4.006 | 4.767 | 5.608 | 6.713 | 7.823 | 9.065 | 10.564 | 12.136 | 13.768 | 15.680 | 17.337 | 19.678 | 23.392 | 26.200 |
| 250 | 0.090 | 0.151 | 0.217 | 0.307 | 0.410 | 0.526 | 0.673 | 0.830 | 1.019 | 1.363 | 1.734 | 2.156 | 2.731 | 3.339 | 4.055 | 4.824 | 5.673 | 6.790 | 7.910 | 9.165 | 10.680 | 12.268 | 13.915 | 15.848 | 17.518 | 19.882 | 23.622 | 26.457 |
| 255 | 0.092 | 0.153 | 0.220 | 0.312 | 0.416 | 0.534 | 0.684 | 0.843 | 1.034 | 1.382 | 1.757 | 2.184 | 2.766 | 3.380 | 4.104 | 4.880 | 5.737 | 6.867 | 7.997 | 9.265 | 10.796 | 12.399 | 14.063 | 16.015 | 17.698 | 20.086 | 23.852 | 26.714 |
| 260 | 0.093 | 0.156 | 0.224 | 0.317 | 0.423 | 0.542 | 0.694 | 0.855 | 1.049 | 1.401 | 1.780 | 2.213 | 2.802 | 3.422 | 4.154 | 4.937 | 5.802 | 6.944 | 8.085 | 9.365 | 10.911 | 12.531 | 14.210 | 16.182 | 17.878 | 20.291 | 24.082 | 26.971 |
| 265 | 0.095 | 0.158 | 0.227 | 0.322 | 0.429 | 0.550 | 0.704 | 0.868 | 1.064 | 1.420 | 1.803 | 2.242 | 2.837 | 3.464 | 4.203 | 4.994 | 5.866 | 7.021 | 8.172 | 9.465 | 11.027 | 12.663 | 14.358 | 16.350 | 18.059 | 20.495 | 24.312 | 27.228 |
| 270 | 0.096 | 0.161 | 0.231 | 0.327 | 0.436 | 0.558 | 0.714 | 0.881 | 1.079 | 1.440 | 1.827 | 2.170 | 2.872 | 3.506 | 4.252 | 5.051 | 5.931 | 7.098 | 8.260 | 9.565 | 11.142 | 12.795 | 14.505 | 16.517 | 18.239 | 20.700 | 24.542 | 27.485 |
| 275 | 0.098 | 0.163 | 0.234 | 0.332 | 0.442 | 0.567 | 0.725 | 0.894 | 1.094 | 1.459 | 1.850 | 2.299 | 2.908 | 3.548 | 4.302 | 5.108 | 5.996 | 7.175 | 8.347 | 9.666 | 11.258 | 12.926 | 14.653 | 16.684 | 18.419 | 20.904 | 24.772 | 27.746 |
| 280 | 0.099 | 0.166 | 0.238 | 0.337 | 0.449 | 0.575 | 0.735 | 0.907 | 1.108 | 1.478 | 1.873 | 2.328 | 2.943 | 3.590 | 4.351 | 5.165 | 6.060 | 7.252 | 8.434 | 9.766 | 11.374 | 13.058 | 14.800 | 16.852 | 18.600 | 21.109 | 25.002 | 28.000 |
| 285 | 0.101 | 0.168 | 0.242 | 0.342 | 0.455 | 0.583 | 0.745 | 0.919 | 1.123 | 1.497 | 1.897 | 2.356 | 2.978 | 3.631 | 4.400 | 5.222 | 6.125 | 7.329 | 8.522 | 9.866 | 11.489 | 13.190 | 14.948 | 17.019 | 18.780 | 21.313 | 25.232 | 28.257 |
| 290 | 0.102 | 0.170 | 0.245 | 0.346 | 0.462 | 0.591 | 0.756 | 0.932 | 1.138 | 1.517 | 1.920 | 2.385 | 3.013 | 3.673 | 4.449 | 5.279 | 6.190 | 7.406 | 8.609 | 9.966 | 11.605 | 13.322 | 15.095 | 17.186 | 18.961 | 21.518 | 25.462 | 28.514 |
| 295 | 0.104 | 0.173 | 0.249 | 0.351 | 0.469 | 0.599 | 0.766 | 0.945 | 1.153 | 1.536 | 1.943 | 2.414 | 3.049 | 3.715 | 4.499 | 5.336 | 6.254 | 7.483 | 8.697 | 10.066 | 11.720 | 13.453 | 15.243 | 17.354 | 19.141 | 21.722 | 25.692 | 28.771 |
| 300 | 0.106 | 0.175 | 0.252 | 0.356 | 0.475 | 0.608 | 0.776 | 0.958 | 1.168 | 1.555 | 1.967 | 2.442 | 3.084 | 3.757 | 4.548 | 5.393 | 6.319 | 7.560 | 8.784 | 10.166 | 11.836 | 13.585 | 15.390 | 17.521 | 19.321 | 21.926 | 25.922 | 29.028 |
| 305 | 0.107 | 0.178 | 0.256 | 0.361 | 0.482 | 0.616 | 0.787 | 0.971 | 1.183 | 1.574 | 1.990 | 2.471 | 3.119 | 3.799 | 4.597 | 5.450 | 6.384 | 7.637 | 8.871 | 10.266 | 11.952 | 13.717 | 15.538 | 17.688 | 19.502 | 22.131 | 26.152 | 29.286 |
| 310 | 0.109 | 0.180 | 0.250 | 0.366 | 0.488 | 0.624 | 0.792 | 0.983 | 1.198 | 1.594 | 2.013 | 2.500 | 3.155 | 3.841 | 4.647 | 5.507 | 6.448 | 7.714 | 8.959 | 10.366 | 12.067 | 13.849 | 15.685 | 17.856 | 19.682 | 22.335 | 26.382 | 29.543 |
| 315 | 0.110 | 0.183 | 0.263 | 0.371 | 0.495 | 0.632 | 0.807 | 0.996 | 1.213 | 1.613 | 2.037 | 2.528 | 3.190 | 3.883 | 4.696 | 5.564 | 6.513 | 7.791 | 9.046 | 10.466 | 12.183 | 13.980 | 15.833 | 18.023 | 19.862 | 22.540 | 26.612 | 29.800 |
| 320 | 0.112 | 0.185 | 0.266 | 0.376 | 0.501 | 0.640 | 0.817 | 1.009 | 1.228 | 1.632 | 2.060 | 2.557 | 3.225 | 3.924 | 4.745 | 5.621 | 6.578 | 7.868 | 9.134 | 10.566 | 12.298 | 14.112 | 15.980 | 18.190 | 20.043 | 22.744 | 26.842 | 30.057 |
| 325 | 0.113 | 0.188 | 0.270 | 0.381 | 0.508 | 0.648 | 0.828 | 1.022 | 1.243 | 1.651 | 2.083 | 2.586 | 3.261 | 3.966 | 4.795 | 5.678 | 6.642 | 7.945 | 9.221 | 10.667 | 12.414 | 14.244 | 16.128 | 18.358 | 20.223 | 22.949 | 27.072 | 30.314 |
| 330 | 0.115 | 0.190 | 0.273 | 0.386 | 0.515 | 0 657 | 0.838 | 1.035 | 1.257 | 1.671 | 2.106 | 2.614 | 3.296 | 4.008 | 4.844 | 5.735 | 6.707 | 8.022 | 9.308 | 10.767 | 12.530 | 14.376 | 16.275 | 18.525 | 20.403 | 23.153 | 27.302 | 30.571 |
| 335 | 0.116 | 0.192 | 0.277 | 0.390 | 0.521 | 0.665 | 0.848 | 1.047 | 1.272 | 1.690 | 2.130 | 2.643 | 3.331 | 4.050 | 4.893 | 5.792 | 6.772 | 8.099 | 9.396 | 10.867 | 12.645 | 14.502 | 16.423 | 18.692 | 20.584 | 23.357 | 27.532 | 30.828 |
| 340 | 0.118 | 0.195 | 0.280 | 0.395 | 0.528 | 0.673 | 0.859 | 1.060 | 1.287 | 1.709 | 2.153 | 2.672 | 3.366 | 4.092 | 4.942 | 5.849 | 6.836 | 8.176 | 9.483 | 10.967 | 12.761 | 14.639 | 16.570 | 18.860 | 20.764 | 23.562 | 27.762 | 31.086 |
| 345 | 0.119 | 0.197 | 0.284 | 0.400 | 0.534 | 0.681 | 0.869 | 1.073 | 1.302 | 1.728 | 2.176 | 2.700 | 3.402 | 4.134 | 4.992 | 5.906 | 6.901 | 8.253 | 9.571 | 11.067 | 12.876 | 14.771 | 16.718 | 19.027 | 20.944 | 23.766 | 27.992 | 31.343 |
| 350 | 0.121 | 0.200 | 0.287 | 0.405 | 0.541 | 0.689 | 0.879 | 1.086 | 1.317 | 1.748 | 2.200 | 2.729 | 3.437 | 4.176 | 5.041 | 5.963 | 6.966 | 8.330 | 9.658 | 11.167 | 12.992 | 14.903 | 16.865 | 19.195 | 21.125 | 23.971 | 28.222 | 31.600 |
| 355 | 0.123 | 0.202 | 0.291 | 0.410 | 0.547 | 0.698 | 0.890 | 1.099 | 1.332 | 1.767 | 2.223 | 2.758 | 3.472 | 4.217 | 5.090 | 6.019 | 7.030 | 8.407 | 9.745 | 11.267 | 13.108 | 15.034 | 17.013 | 19.362 | 21.305 | 24.175 | 28.453 | 31.857 |
| 360 | 0 124 | 0.205 | 0 294 | 0.415 | 0.554 | 0.706 | 0.900 | 1.111 | 1.347 | 1 786 | 2.246 | 2.786 | 3.508 | 4.259 | 5.140 | 6.076 | 7.095 | 8.484 | 9.833 | 11.367 | 13.223 | 15.166 | 17.160 | 19.529 | 21.485 | 24.380 | 28.683 | 32.114 |
| 365 | 0.126 | 0.207 | 0.298 | 0.420 | 0.561 | 0.714 | 0.910 | 1.124 | 1.362 | 1.805 | 2.270 | 2.815 | 3.543 | 4.301 | 5.189 | 6.133 | 7.159 | 8.561 | 9.920 | 11.467 | 13.339 | 15.298 | 17.308 | 19.697 | 21.666 | 24.584 | 28.913 | 32.371 |
| 370 | 0.127 | 0.210 | 0.301 | 0.425 | 0.567 | 0.722 | 0.920 | 1.137 | 1.377 | 1.825 | 2.293 | 2.844 | 3.578 | 4.343 | 5.238 | 6.190 | 7.224 | 8.638 | 10.008 | 11.567 | 13.454 | 15.430 | 17.455 | 19.864 | 21.846 | 24.789 | 29.143 | 32.628 |
| 375 | 0.129 | 0.212 | 0.305 | 0.430 | 0.574 | 0.730 | 0.931 | 1.150 | 1.392 | 1.844 | 2.316 | 2.872 | 3.614 | 4.385 | 5.288 | 6.247 | 7.289 | 8.715 | 10.095 | 11.668 | 13.570 | 15.561 | 17.603 | 20.031 | 22.027 | 24.993 | 29.373 | 32.885 |
| 380 | 0.130 | 0.214 | 0.309 | 0.434 | 0.580 | 0 738 | 0.941 | 1.163 | 1.406 | 1.863 | 2.340 | 2.901 | 3.649 | 4.427 | 5.337 | 6.304 | 7.353 | 8.792 | 10.182 | 11.768 | 13.686 | 15.693 | 17.750 | 20.199 | 22.207 | 25.197 | 29.603 | 33.143 |
| 385 | 0.132 | 0.217 | 0.312 | 0.439 | 0.587 | 0.747 | 0.951 | 1.175 | 1.421 | 1.882 | 2.363 | 2.930 | 3.684 | 4.468 | 5.386 | 6.361 | 7.418 | 8.869 | 10.270 | 11.868 | 13.801 | 15.825 | 17.898 | 20.366 | 22.387 | 25.402 | 29.833 | 33.400 |
| 390 | 0.133 | 0.219 | 0.316 | 0.444 | 0.593 | 0.755 | 0.962 | 1.188 | 1.436 | 1.902 | 2.386 | 2.958 | 3.719 | 4.510 | 5.435 | 6.418 | 7.483 | 8.946 | 10.357 | 11.968 | 13.917 | 15 957 | 18.045 | 20.533 | 22.568 | 25.606 | 30.063 | 33.657 |
| 395 | 0.135 | 0.222 | 0.319 | 0.449 | 0.600 | 0.763 | 0.972 | 1.201 | 1.451 | 1.921 | 2.409 | 2.987 | 3.755 | 4.552 | 5.485 | 6.475 | 7.547 | 9.023 | 10.445 | 12.068 | 14.032 | 16.088 | 18.193 | 20.701 | 22.748 | 25.811 | 30.293 | 33.914 |
| 400 | 0.136 | 0.224 | 0.323 | 0.454 | 0.607 | 0.771 | 0.982 | 1.214 | 1.466 | 1.940 | 2.433 | 3.016 | 3.790 | 4.594 | 5.534 | 6.532 | 7.612 | 9.100 | 10.532 | 12.168 | 14.148 | 16.220 | 18.340 | 20.868 | 22.928 | 26.015 | 30.523 | 34.171 |
| 405 | 0.138 | 0.227 | 0.326 | 0.459 | 0.613 | 0.779 | 0.993 | 1.227 | 1.481 | 1.959 | 2.456 | 3.044 | 3.825 | 4.636 | 5.583 | 6.589 | 7.677 | 9.177 | 10.619 | 12.268 | 14.264 | 16.352 | 18.488 | 21.035 | 23.109 | 26.220 | 30.753 | 34.428 |
| 410 | 0.140 | 0.229 | 0 330 | 0.464 | 0.620 | 0.788 | 1.003 | 0.207 | 1.496 | 1.979 | 2.479 | 3.073 | 3.861 | 4.678 | 5.633 | 6.646 | 7.741 | 9.254 | 10.707 | 12.368 | 14.379 | 16.484 | 18.635 | 21.203 | 23.289 | 26.424 | 30.983 | 34.685 |
| 415 | 0.141 | 0.232 | 0.333 | 0.469 | 0.626 | 0.796 | 1.013 | 1.252 | 1.511 | 1.998 | 2.503 | 3.102 | 3.896 | 4.720 | 5.682 | 6.703 | 7.806 | 9.331 | 10.794 | 12.468 | 14.495 | 16.615 | 18.783 | 21.370 | 23.469 | 26.629 | 31.213 | 34.943 |
| 420 | 0.143 | 0.234 | 0.337 | 0.474 | 0.633 | 0.804 | 1.023 | 1.265 | 1.526 | 2.017 | 2.526 | 3.130 | 3.931 | 4.761 | 5.731 | 6.760 | 7.871 | 9.408 | 10.882 | 12.568 | 14.610 | 16.747 | 18.930 | 21.537 | 23.650 | 26.833 | 31.443 | 35.200 |
| 425 | 0.144 | 0.236 | 0.340 | 0.478 | 0.639 | 0.812 | 1.034 | 1.278 | 1.541 | 2.036 | 2.549 | 3.159 | 3.967 | 4.803 | 5.781 | 6.817 | 7.935 | 9.485 | 10.969 | 12.669 | 14.726 | 16.879 | 19.078 | 21.705 | 23.830 | 27.037 | 31.673 | 35.457 |
| 430 | 0.146 | 0.239 | 0.344 | 0.483 | 0.646 | 0.820 | 1.044 | 1.291 | 1.555 | 2.056 | 2.573 | 3.188 | 4.002 | 4.845 | 5.830 | 6.874 | 8.000 | 9.562 | 11.056 | 12.769 | 14.842 | 17.011 | 19.225 | 21.872 | 24.010 | 27.242 | 31.903 | 35.714 |
| 435 | 0.147 | 0.241 | 0.347 | 0.488 | 0.653 | 0.828 | 1.054 | 1.303 | 1.570 | 2.075 | 2.596 | 3.216 | 4.037 | 4.887 | 5.879 | 6.931 | 8.065 | 9.639 | 11.144 | 12.869 | 14.957 | 17.142 | 19.373 | 22.039 | 24.191 | 27.446 | 32.133 | 35.971 |
| 440 | 0.149 | 0.244 | 0.351 | 0.493 | 0.659 | 0.837 | 1.065 | 1.316 | 1.585 | 2.094 | 2.619 | 3.245 | 4.072 | 4.929 | 5.928 | 6.988 | 8.129 | 9.716 | 11.231 | 12.969 | 15.073 | 17.274 | 19.520 | 22.207 | 24.371 | 27.651 | 32.363 | 36.228 |
| 445 | 0.150 | 0.246 | 0.354 | 0.498 | 0.666 | 0.845 | 1.075 | 1.329 | 1.600 | 2.113 | 2.643 | 3.274 | 4.108 | 4.971 | 5.978 | 7.045 | 8.194 | 9.793 | 11.319 | 13.069 | 15.188 | 17.406 | 19.668 | 22.374 | 24.551 | 27.855 | 32.593 | 36.485 |
| 450 | 0.152 | 0.249 | 0.358 | 0.503 | 0.672 | 0.853 | 1.085 | 1.342 | 1.615 | 2.133 | 2.666 | 3.302 | 4.143 | 5.013 | 6.027 | 7.102 | 8.259 | 9.870 | 11.406 | 13.169 | 15.304 | 17.538 | 19.815 | 22.542 | 24.732 | 28.060 | 32.823 | 36.743 |
| 455 | 0.153 | 0.251 | 0.361 | 0.508 | 0.679 | 0.861 | 1.096 | 1.355 | 1.630 | 2.152 | 2.689 | 3.331 | 4.178 | 5.054 | 6.076 | 7.158 | 8.323 | 9.947 | 11.493 | 13.269 | 15.420 | 17.669 | 19.963 | 22.709 | 24.912 | 28.264 | 33.053 | 37.000 |
| 460 | 0.155 | 0.254 | 0.365 | 0.513 | 0.685 | 0.869 | 1.106 | 1.367 | 1.645 | 2.171 | 2.713 | 3.360 | 4.214 | 5.096 | 6.126 | 7.215 | 8.388 | 10.024 | 11.581 | 13.369 | 15.535 | 17.801 | 20.110 | 22.876 | 25.093 | 28.468 | 33.283 | 37.257 |
| 465 | 0.157 | 0.256 | 0.368 | 0.518 | 0.692 | 0.878 | 1.116 | 1.380 | 1.660 | 2.190 | 2.736 | 3.388 | 4.249 | 5.138 | 6.175 | 7.272 | 8.452 | 10.101 | 11.668 | 13.469 | 15.651 | 17.933 | 20.258 | 23.044 | 25.273 | 28.673 | 33.513 | 37.514 |
| 470 | 0.158 | 0.258 | 0.372 | 0.522 | 0.699 | 0.886 | 1.126 | 1.393 | 1.675 | 2.210 | 2.759 | 3.417 | 4.284 | 5.180 | 6.224 | 7.329 | 8.517 | 10.178 | 11.756 | 13.569 | 15.766 | 18.065 | 20.405 | 23.211 | 25.453 | 28.877 | 33.743 | 37.771 |
| 475 | 0.160 | 0.261 | 0.375 | 0.527 | 0.705 | 0.894 | 1.137 | 1.406 | 1.690 | 2.229 | 2.782 | 3.446 | 4.320 | 5.222 | 6.274 | 7.386 | 8.582 | 10.255 | 11.843 | 13.670 | 15.882 | 18.196 | 20.553 | 23.378 | 25.634 | 29.082 | 33.973 | 38.028 |
| 480 | 0.161 | 0.263 | 0.379 | 0.532 | 0.712 | 0.902 | 1.147 | 1.419 | 1.704 | 2.248 | 2.806 | 3.474 | 4.355 | 5.264 | 6.323 | 7.443 | 8.646 | 10.332 | 11.930 | 13.770 | 15.998 | 18.328 | 20.700 | 23.546 | 25.814 | 29.286 | 34.203 | 38.285 |
| 485 | 0.163 | 0.266 | 0.383 | 0.537 | 0.718 | 0.910 | 1.157 | 1.431 | 1.719 | 2.267 | 2.829 | 3.503 | 4.390 | 5.305 | 6.372 | 7.500 | 8.711 | 10.409 | 12.018 | 13.870 | 16.113 | 18.460 | 20.848 | 23.713 | 25.994 | 29.491 | 34.433 | 38.543 |
| 490 | 0.164 | 0.268 | 0.386 | 0.542 | 0.725 | 0.919 | 1.168 | 1.444 | 1.734 | 2.287 | 2.852 | 3.532 | 4.425 | 5.347 | 6.421 | 7.557 | 8.776 | 10.486 | 12.105 | 13.970 | 16.229 | 18.592 | 20.995 | 23.880 | 26.175 | 29.695 | 34.663 | 38.800 |
| 495 | 0.166 | 0.271 | 0.390 | 0.547 | 0.731 | 0.927 | 1.178 | 1.457 | 1.749 | 2.306 | 2.876 | 3.560 | 4.461 | 5.389 | 6.471 | 7.614 | 8.840 | 10.563 | 12.193 | 14.070 | 16.344 | 18.723 | 21.143 | 24.048 | 26.355 | 29.900 | 34.893 | 39.057 |
| 500 | 0.167 | 0.273 | 0.393 | 0.552 | 0.738 | 0.935 | 1.188 | 1.470 | 1.764 | 2.325 | 2.899 | 3.589 | 4.496 | 5.431 | 6.520 | 7.671 | 8.905 | 10.640 | 12.280 | 14.170 | 16.460 | 18.855 | 21.290 | 24.215 | 26.535 | 30.104 | 35.124 | 39.314 |
Applications of Stud Bolts
Stud Bolts are commonly used in industries that demand bolts that are strong, secure, and provide leakage resistance. This is particularly true for industries that require bolts for applications involving high pressure. Stud bolts are commonly used in oil and gas pipelines, as well as in petrochemical industries. The bolts are also used in power generation equipment, including turbines and boilers, as well as pressure vessels and heat exchangers. Stud bolts are also used in offshore and marine applications, and due to their material and mechanical strength, they are particularly used in applications involving high pressure, high temperatures, and other harsh operating conditions.
How to Use the Weight Chart Correctly
To ensure accurate selection, it is always recommended that stud bolt dimensions and materials be verified for compliance with project requirements. For non-standard sizes or in critical applications, it is recommended that you contact the manufacturer for accurate weight data.

Steps to use the weight chart effectively:
- Identify bolt diameter (M8, M10, M12, etc.)
- Confirm required length
- Select material and coating.
- Refer to weight per piece or per meter.
- Calculate the total weight based on the quantity.
Including a safety margin is recommended for bulk orders and large-scale projects.
Conclusion
The Stud Bolt Weight Chart in PDF is an important tool that helps engineers, contractors, and purchasing professionals plan and execute various industrial and construction activities with ease. The chart helps in the estimation of materials and the safe installation of various equipment and materials. The weight of the stud bolts changes with the diameter and length of the bolts. The weight chart helps professionals make important decisions that can prove beneficial in the long run. The weight chart is important in the selection of the right stud bolts for various industrial and construction activities. The chart helps in the safe installation of the materials. The weight chart is important in the selection of the right stud bolts for various industrial and construction activities.
